The DTC 800 is designed with powerful dual flagship DACs, dual independent op-amp chips, independent LDO power supply, high-performance USB main control, active independent crystal oscillator, and independent volume control. The meticulously tuned professional audio architecture delivers a pure sound consistently.



Equipped with two high-performance flagship DAC chips, the CS43198, the DTC 800 supports decoding up to PCM 32bit/384kHz and native DSD256, ensuring exceptional audio fidelity.



Utilizing two SGM 8262 independent op-amp chips, the DTC 800 achieves a balanced output of up to 450mW@32Ω, rivaling the output of professional audio players.



Despite its small size, the DTC 800 offers comprehensive output options with both 3.5mm single-ended and 4.4mm balanced interfaces. It also features dual-level output modes, with high-level mode providing an output voltage up to 4Vrms.

(*To switch the output mode, long press the "+" button for more than one second, then release.)

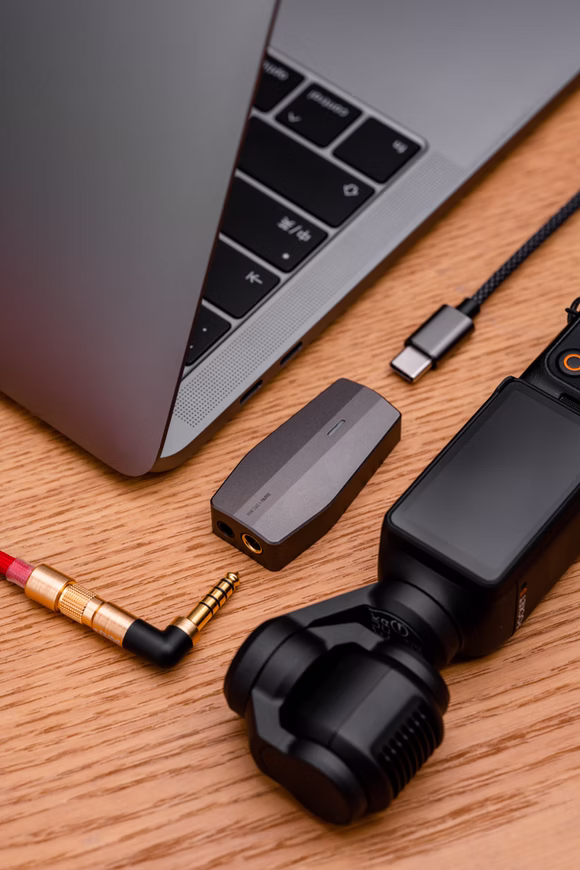

The body of the DTC 800 is CNC-machined from a single block of aluminum alloy, featuring a delicate surface. Sandblasted finish and unique logo texture on the base, combining elegance and compactness while facilitating heat dissipation. Its compact and lightweight design, weighing only about 20 grams, ensures excellent portability, allowing you to enjoy high-quality sound anytime, anywhere.



The modular design of the DTC 800 ensures compatibility across all platforms, capable of decoding PCM up to 32bit/384kHz and DSD up to DSD256 on both computers and mobile devices.





Product Highlight

  • 450mW@32Ω High Power Output
  • Dual CS43198 Flagship DACs
  • Dual SGM 8262 Independent Op-Amps
  • Professional Audio Architecture
  • PCM 32bit/384kHz, DSD256 Native Decoding
  • Dual Level Output Modes
  • 4.4mm+3.5mm Dual Interfaces
  • Detachable Cable Compatible Across Platforms
  • Precision-Crafted All-Metal Body

Technical Info



  • DAC Chipset: CS43198*2
  • Op-Amp Chipset: SGM8262*2
  • Signal-to-Noise Ratio (SNR):
    • Single-Ended: 125 dB
    • Balanced: 126 dB
  • THD+N: 0.0002%
  • Power Output:
    • Single-Ended: 180mW @ 32Ω
    • Balanced: 450mW @ 32Ω
  • Decoding Capability:
    • PCM: 32-bit / 384kHz
    • DSD: Dop 128  / Native 256
  • Input Interface: USB Type-C
  • Output Interface:
    • 3.5mm Single-Ended
    • 4.4mm Balanced
