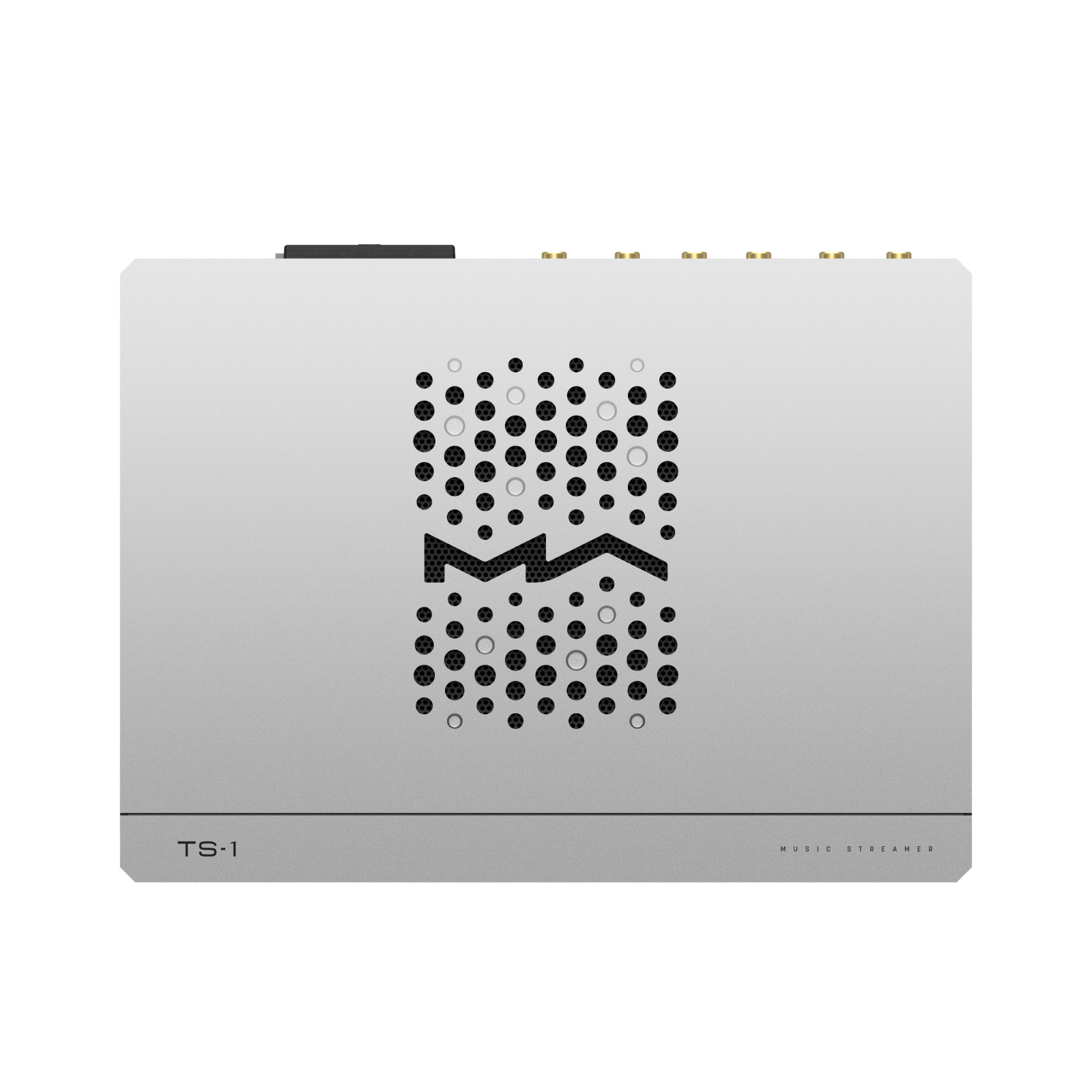

Matrix TS1

Specifications

Digital Input

COAXIAL & OPTICAL

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

DSD 2.8MHz (DoP)

HDMI ARC PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

USB Audio

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)

DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

Aux In

SNR

100dB A-weighting

THD+N

< 0.004%@1k,<0.004%@20Hz-20kHz

Frequency Response

20Hz-20kHz ±0.1 -3dB@40kHz

Crosstalk

>-105dB

MAX Input Level

2.1VRMS

Line Out

XLR

SNR：123dB A-weighting

THD+N：< 0.00018%@1k, < 0.00022%@20Hz-20kHz

Frequency Response：20Hz-20kHz ±0.1 -3dB@80kHz

Crosstalk：>-140dB

Output Level：4.5VRMS @ 0dB / 0~4.5VRMS Adjustable

RCA

SNR：120dB A-weighting

THD+N：< 0.00020%@1k,<0.00022%@20Hz-20kHz

Frequency Respons：20Hz-20kHz ±0.1 -3dB@80kHz

Crosstalk：> -120dB

Output Level：2.2VRMS @ 0dB / 0~2.2VRMS Adjustable

SUB

Cutoff Frequency：150Hz@-3dB

Output Level：2.2VRMS @ 0dB / 0~2.2VRMS Adjustable

Headphone Output

4.4mm Blanced

SNR：119dB A-weighting

THD+N：< 0.0004%@20Hz-20kHz 4VRMS

Frequency Response：20Hz-20kHz ±0.5 -3dB@22kHz

Output Impedance：< 2Ω

Output Power：1000mW@33Ω, 1000mW@300Ω, 500mW@600Ω, 1%THD

Gain：+12dB

6.35mm Unbalanced

SNR：116dB A-weighting

THD+N：< 0.0004%@20Hz-20kHz 2VRMS

Frequency Response：20Hz-20kHz ±0.5 -3dB@22kHz

Output Impedance：< 1Ω

Output Power：1400mW@33Ω, 250mW@300Ω, 130mW@600Ω, 1%THD

Gain：+12dB

Network

LAN

10/100/1000 Mbps

Wi-Fi 2.4 GHz / 5 GHz

USB

2 x USB 3.0

The USB port provides a maximum power of 5V/1A.

The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

MA Player

Controller app MA Remote App

Local Playback

Format Supported：MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO

PCM 16-24Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz

DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz

Roon Ready

PCM 16-24 Bit /44.1 kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz

DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz

QQ音乐

The audio specs depend on the service provider

AirPlay 2 The audio specs depend on the service provider

DLNA/UPnP The audio specs depend on the service provider

TIDAL Connect The audio specs depend on the service provider

Spotify Connect The audio specs depend on the service provider

vTuner The audio specs depend on the service provider

Radio Paradise The audio specs depend on the service provider

Trigger

Trigger in

DC 6-12V<10mA

Trigger out

DC 12V/50mA MAX

Storage Extension

M.2 2280 2260 2242 NVMe PCIe SSD slot

SSD supporting PCIe 3.0/4.0/5.0 standards，The maximum power specification provided by the expansion slot is DC 3.3V3A.

Power

AC input

Wide voltage switching power supply

Power Voltage: AC 100V-240V 50/60Hz

Standby Power Consumption: < 5W

MAX Power Consumption: < 35W

DC input

External power voltage: DC 12V ±10%

External power wattage: Larger than 36W

Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)

Weight & size

Weight

2.89kg (6.37 pounds)

Dimension

Width: 280 mm (11.02 inches)

Depth: 210 mm (8.27 inches)

Height: 82 mm (3.23 inches)

Accessories

Power cable *1

IR Remote *1

Printed material *1
