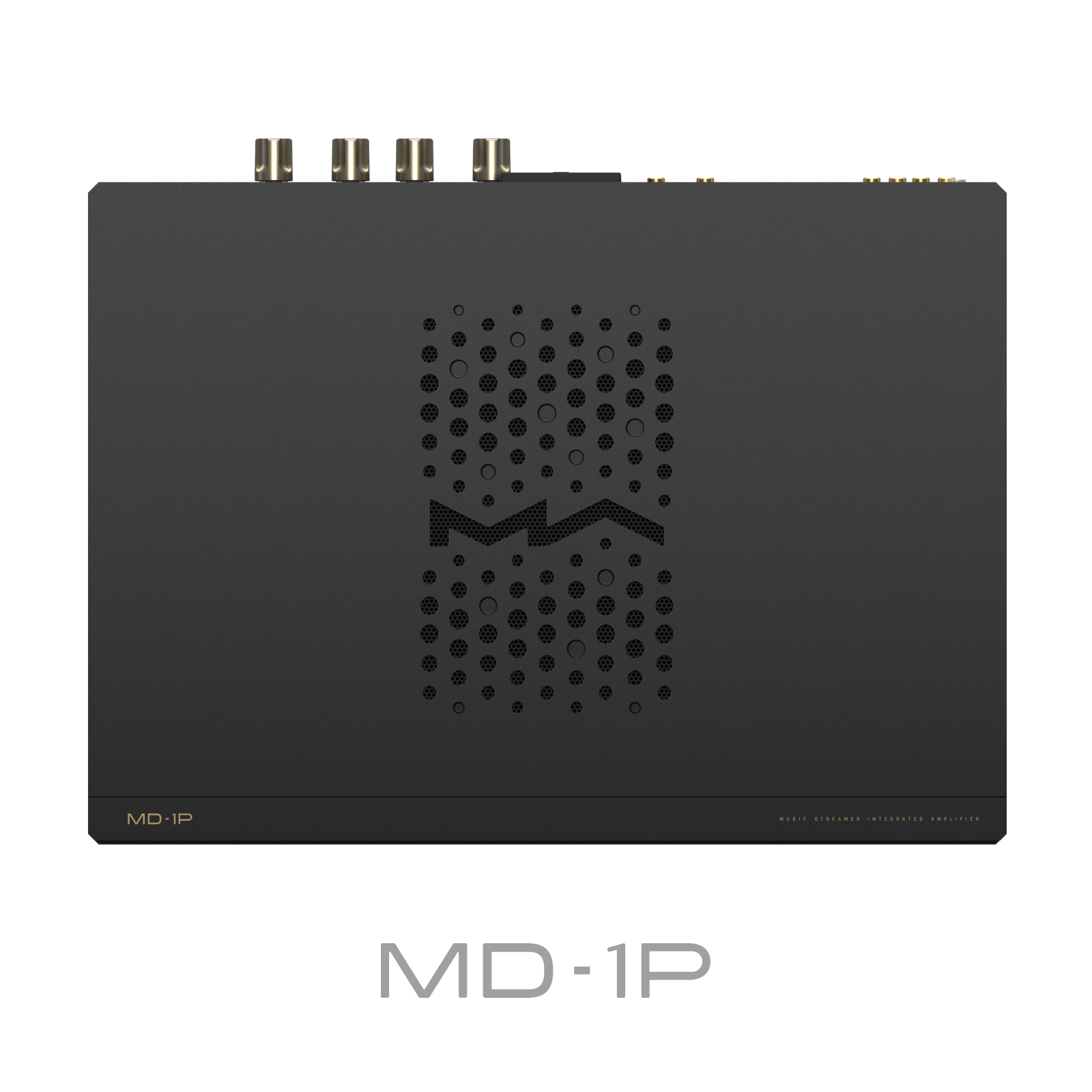

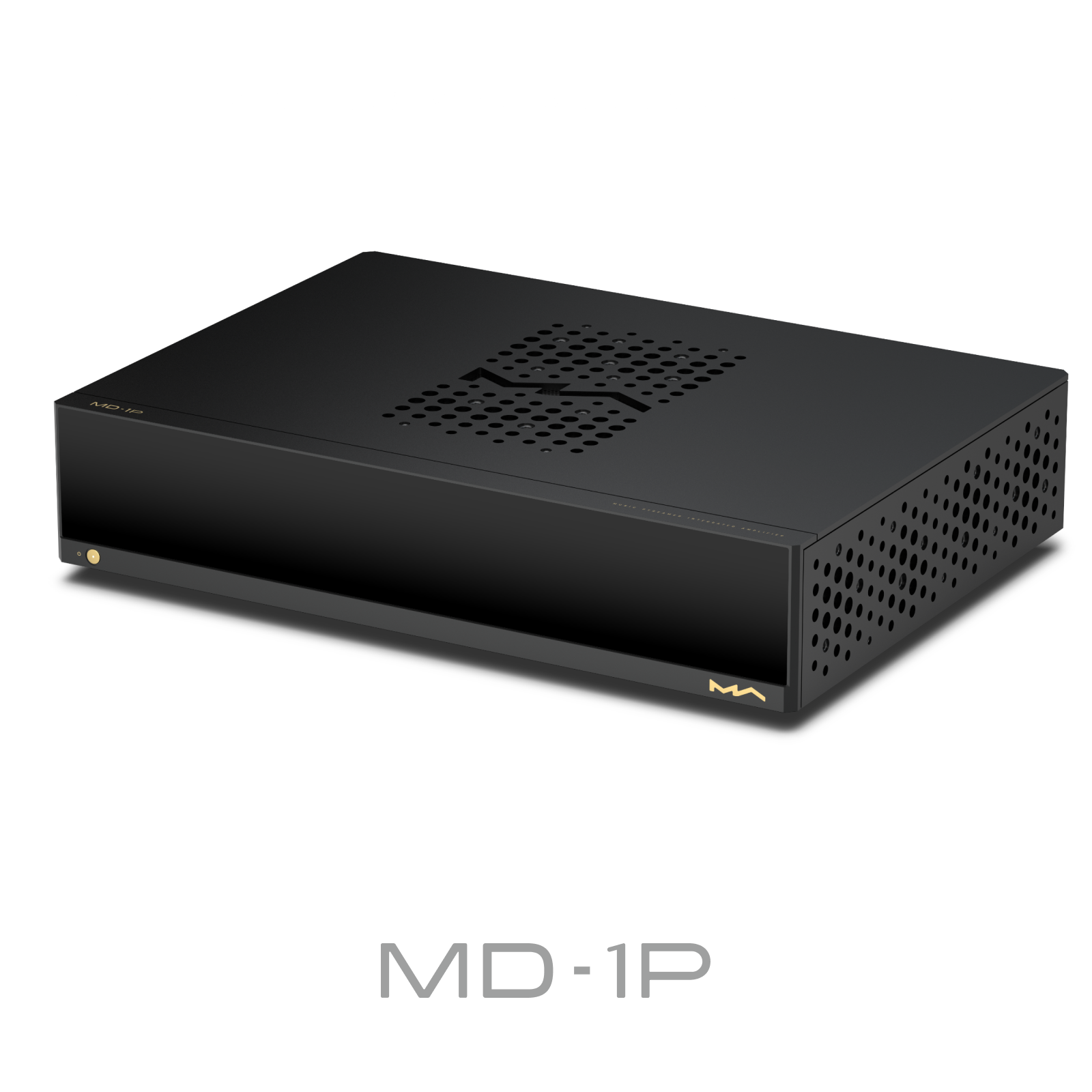

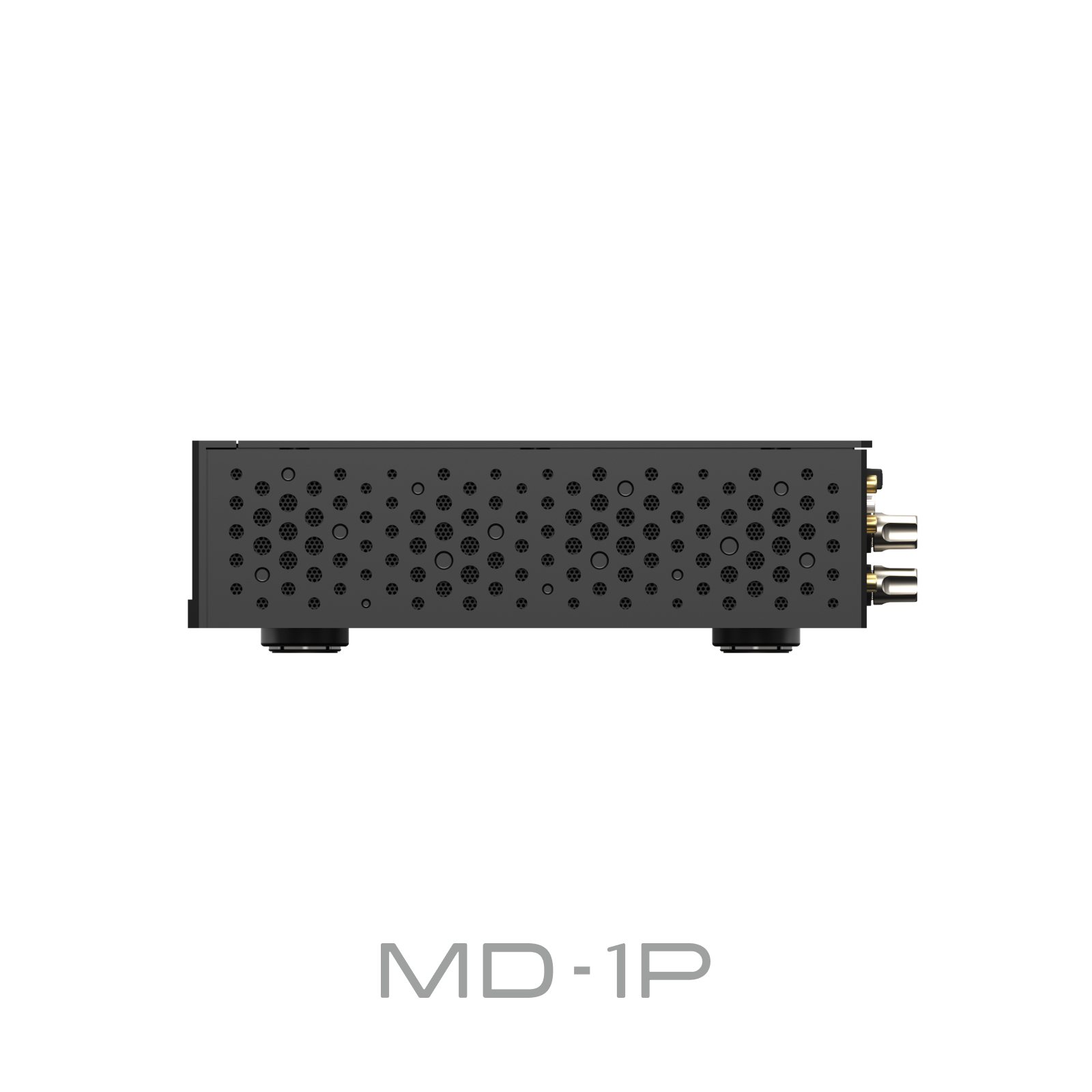

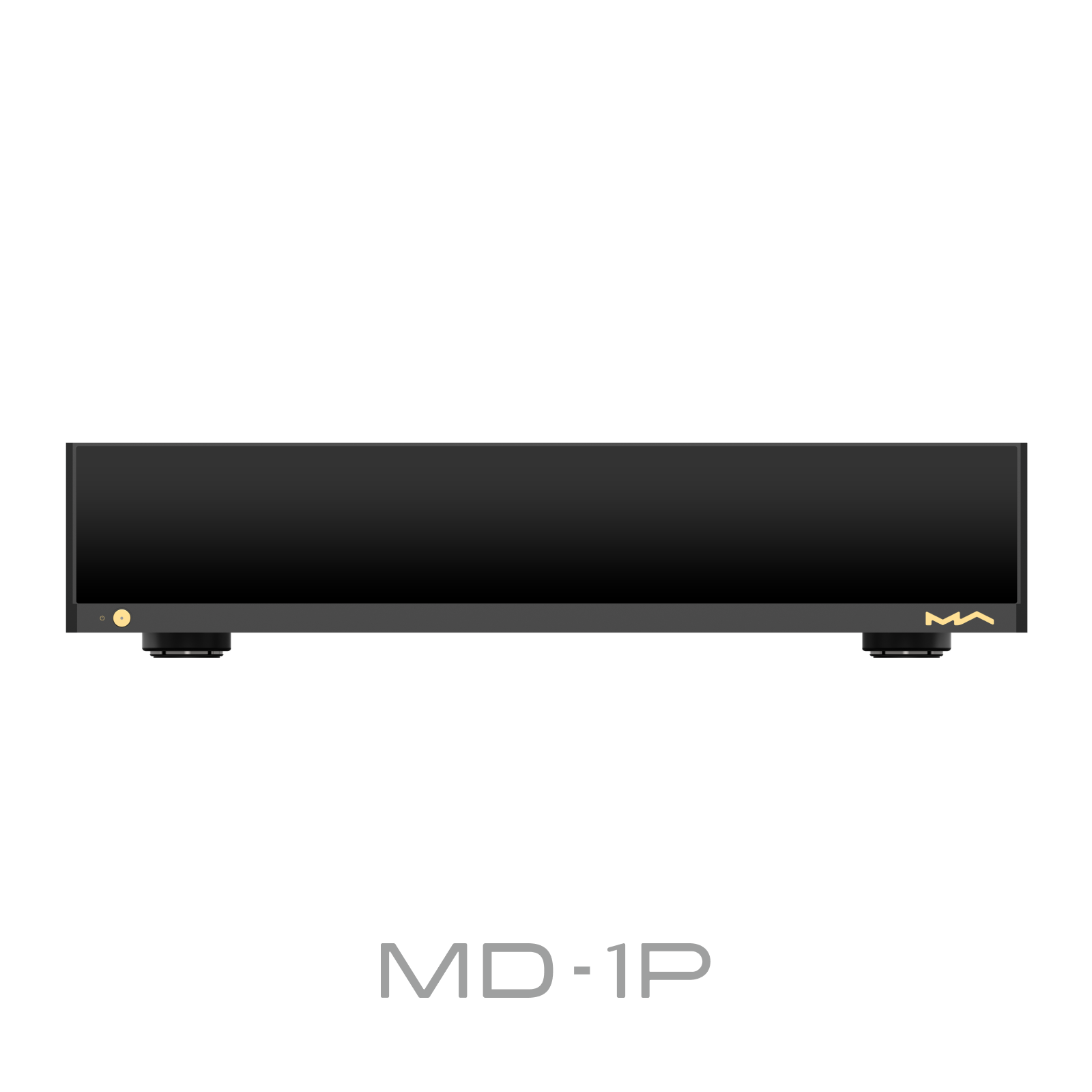

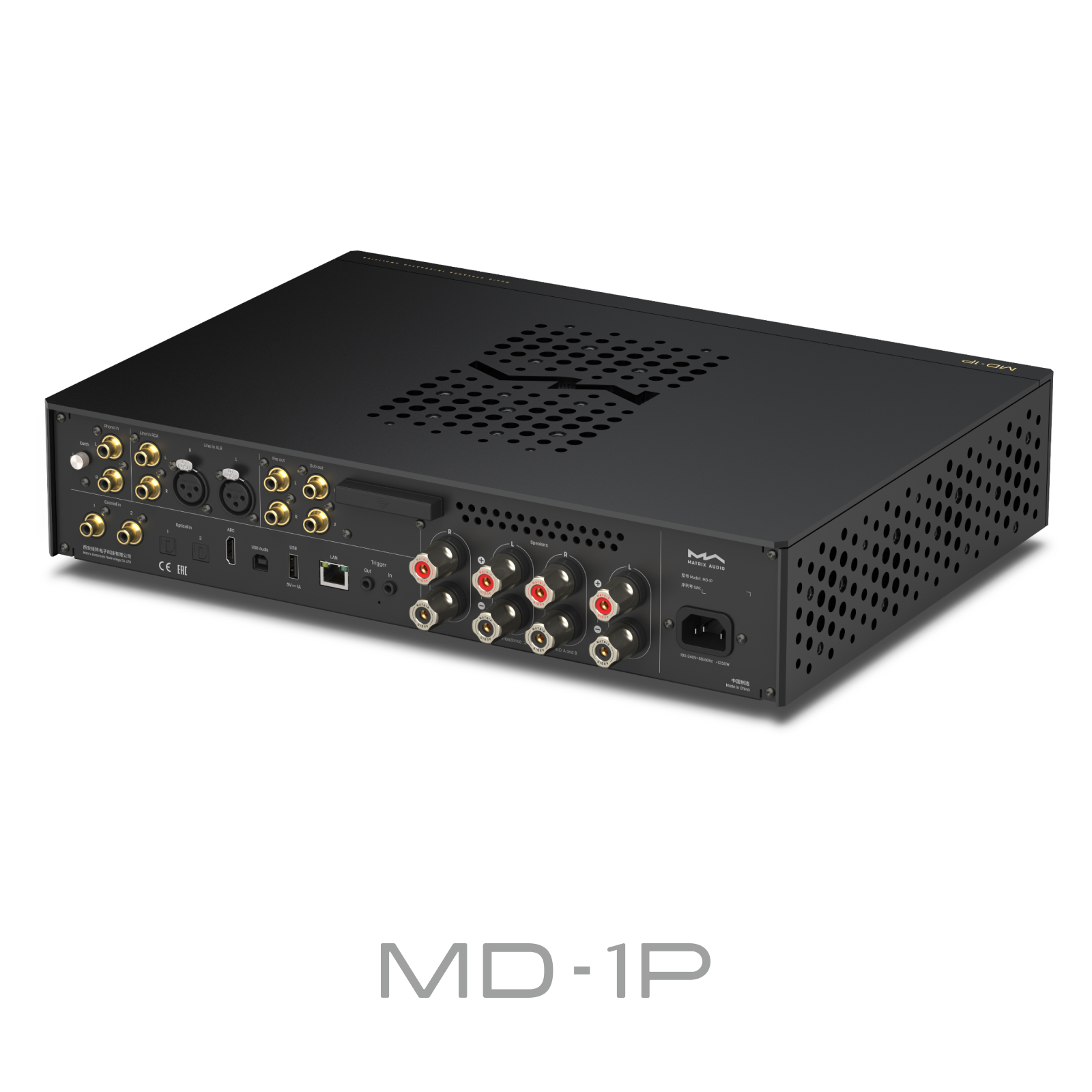

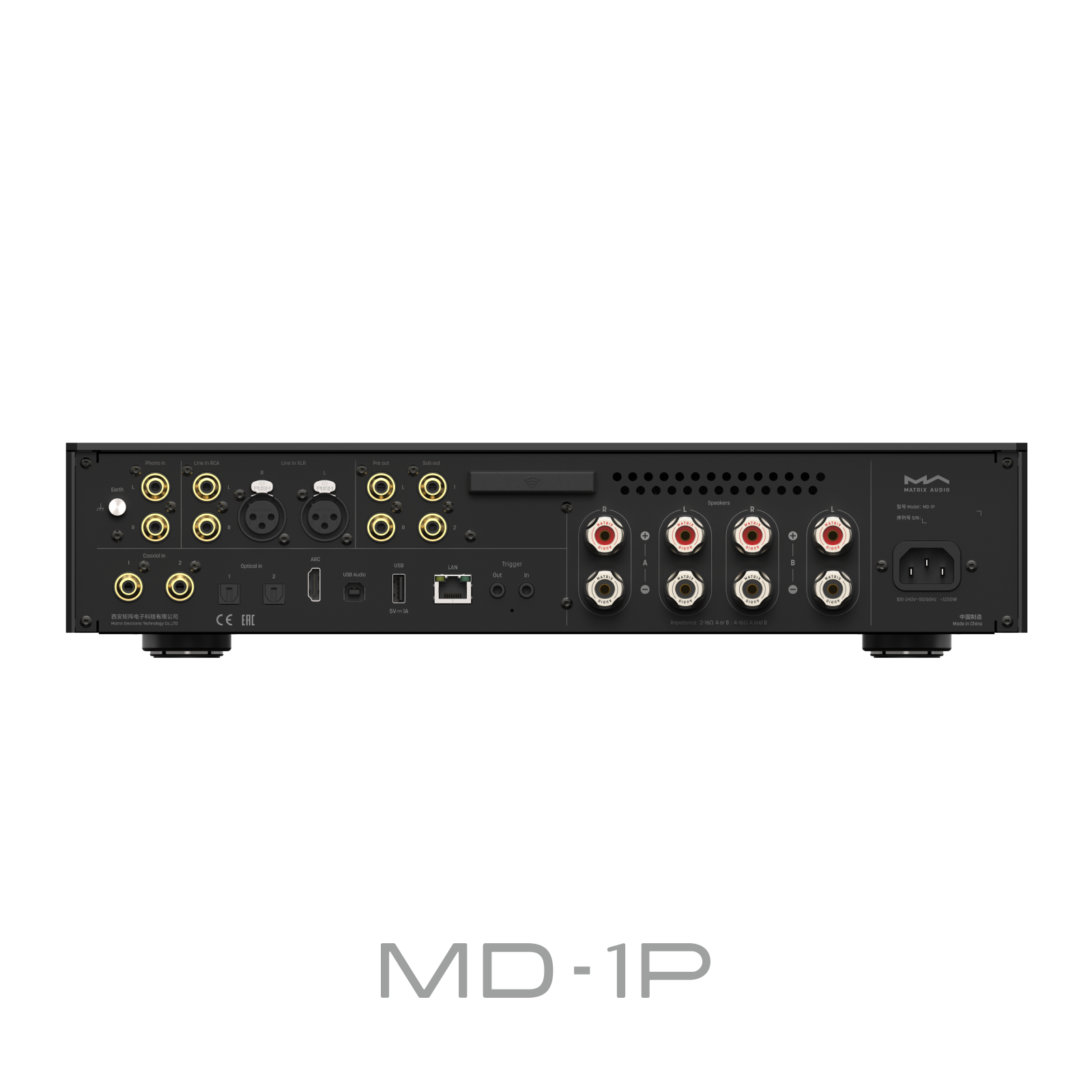

Matrix MD1P

Specifications

Digital Input

COAXIAL & OPTICAL

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

DSD 2.8MHz (DoP)

HDMI ARC

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

USB Audio

PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)

DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

HD Bluetooth

High-Res Bluetooth

Sample Rate ：PCM 16Bit/44.1kHz, 48kHz, 96kHz aptX/aptX

HD/AAC/SBC/LDAC

Bluetooth version：Bluetooth V5.0

Operating distance：10-15m

Line in

XLR

Input Impedance：47kΩ

MAX Input Level：8VRMS

RCA

Input Impedance：47kΩ

MAX Input Level：4VRMS

Phono Input

MM Phono Stage

Frequency Response：RIAA

Input Impedance：47kΩ/100pF

Gain：+40dB

Pre out

RCA

Output Impedance：< 20Ω

Output Level：0~2.2VRMS Adjustable

SNR: 120dB A-weighting

THD+N: < 0.0005%@1k，< 0.0005%@20Hz-20kHz

Frequency Response：20Hz-20kHz ±0.2 -3dB@80kHz

Crosstalk：> -115dB

SUB

Output Impedance：< 20Ω

Cutoff Frequency：150Hz

Output Level：0~2.2VRMS Adjustable

Speaker Output

MD-1

Output Power：2 x 150WRMS@8Ω

Output impedance：＜5mΩ

Frequency Response：20-20kHz ±0.1, 45kHz@-3dB

SNR：122dB A-weighting

Crosstalk ：-120dB

Gain：+30dB

Speaker Impedance：2-16Ω

MD-1P

Output Power：2 x 300WRMS@8Ω

Output impedance：＜3mΩ

Frequency Response：20-20kHz ±0.1, 45kHz@-3dB

SNR：122dB A-weighting

Crosstalk：-120dB

Gain：+33dB

Speaker Impedance：A or B 2–16Ω, A and B 4-16Ω

Network

LAN

10/100/1000 Mbps

Wi-Fi 2.4 GHz / 5 GHz

USB

USB 3.0

The USB port provides a maximum power of 5V/1A.

The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

MA Player

Controller app

MA Remote App

Local Playback

Format Supported：MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO

PCM 16-24Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz

DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz

Roon Ready

PCM 16-24 Bit /44.1 kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz

DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz

QQ音乐

The audio specs depend on the service provider

AirPlay 2 The audio specs depend on the service provider

DLNA/UPnP The audio specs depend on the service provider

TIDAL Connect The audio specs depend on the service provider

Spotify Connect The audio specs depend on the service provider

vTuner The audio specs depend on the service provider

Radio Paradise The audio specs depend on the service provider

Trigger

Trigger in

DC 6-12V<10mA

Trigger out

DC 12V/50mA MAX

Storage Extension

M.2 2280 2242 2230 NVMe PCIe SSD slot

SSD supporting PCIe 3.0/4.0/5.0 standards，The maximum power specification provided by the expansion slot is DC 3.3V3A.

Power

Power Voltage

AC 100V-240V 50/60Hz

MD-1

Standby Power Consumption: <5W

Idle Power Consumption: < 35W

MAX Power Consumption: < 700W

MD-1P

Standby Power Consumption: <5W

Idle Power Consumption: < 45W

MAX Power Consumption: < 1250W

Weight & size

MD-1

Weight: 7.0kg (15.4 pounds)

Dimension:

• Width: 430 mm (16.93 inches)

• Depth: 331 mm (13.03 inches)

• Height: 96 mm (3.78 inches)

MD-1P

Weight: 7.6kg (16.7 pounds)

Dimension:

• Width: 430 mm (16.93 inches)

• Depth: 331 mm (13.03 inches)

• Height: 96 mm (3.78 inches)

Accessories

Power cable *1

IR Remote *1

Printed material *1
