Specifications

Standards and Protocol



IEEE 802.3:10BASE-T



IEEE 802.3 u:100BASE-X



IEEE 802.3 z:1000BASE-T



IEEE 802.3 ab:1000BASE-T



IEEE 802.3 ae:10G BASE-SR/LR



IEEE 802.3 bz:2.5G/5G BASE-T



IEEE 802.3 cb:2500BASE-X







Ports

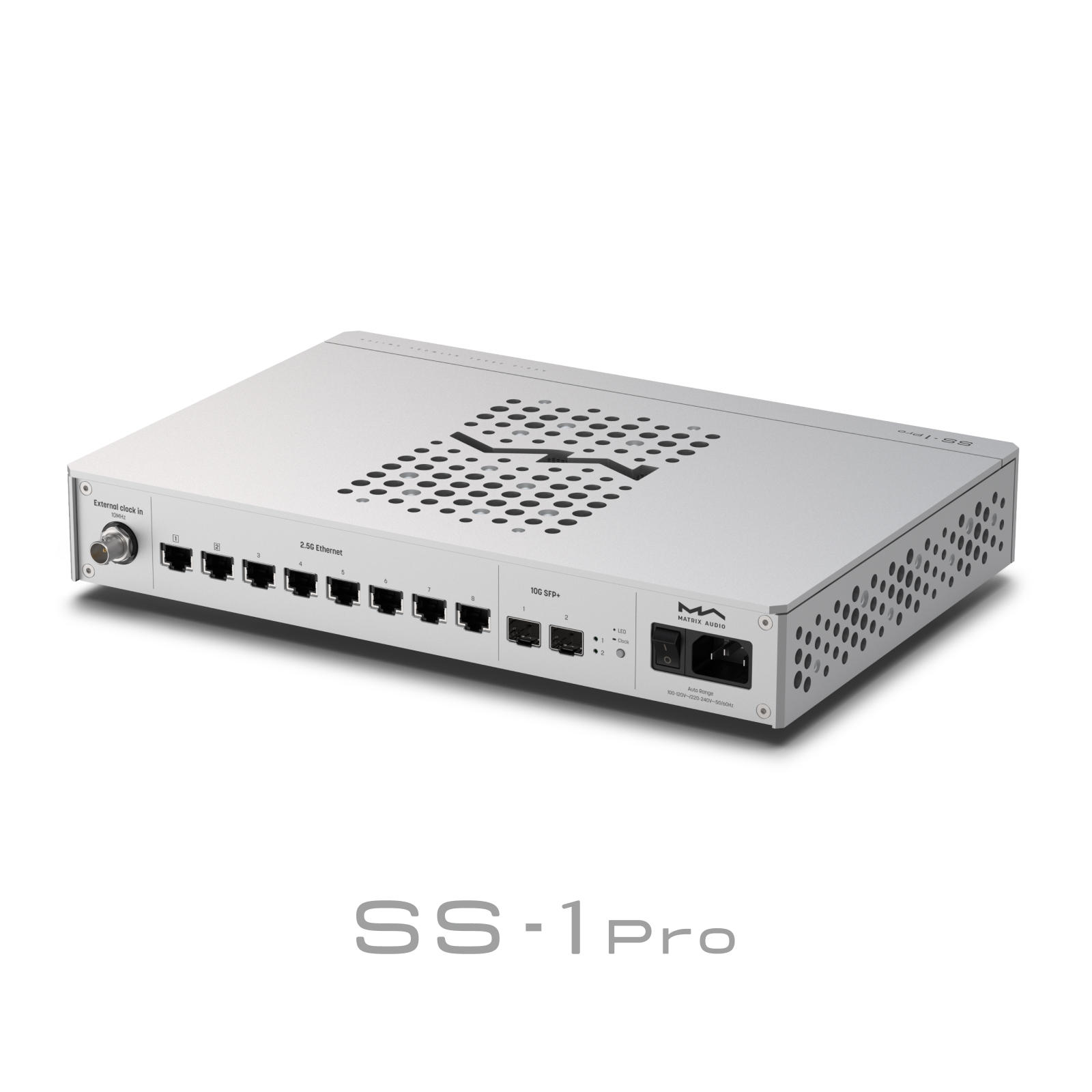

SS-1 Pro

2x 100Mbps/10Mbps RJ45



6x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45



2x 10Gbps SFP/SFP+

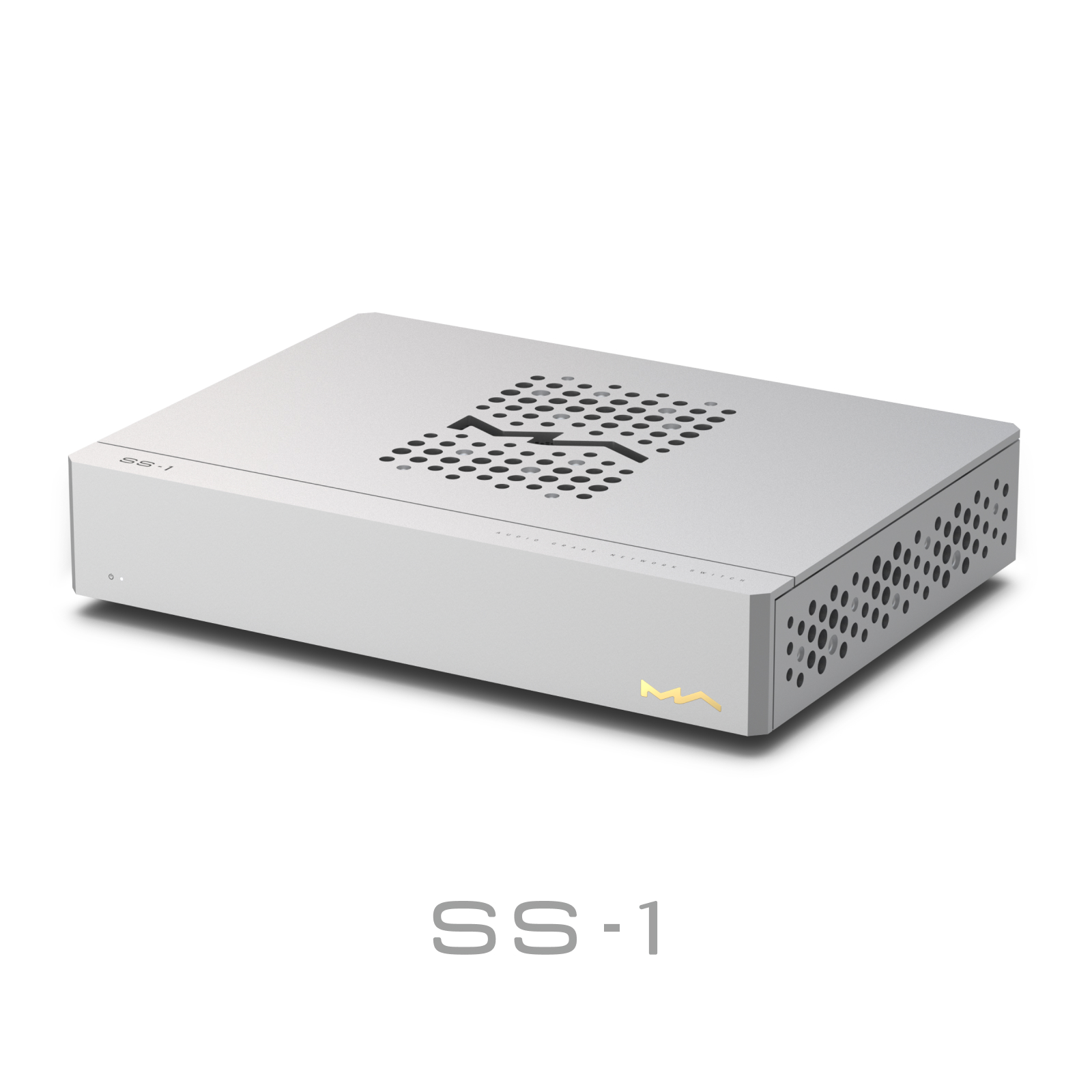

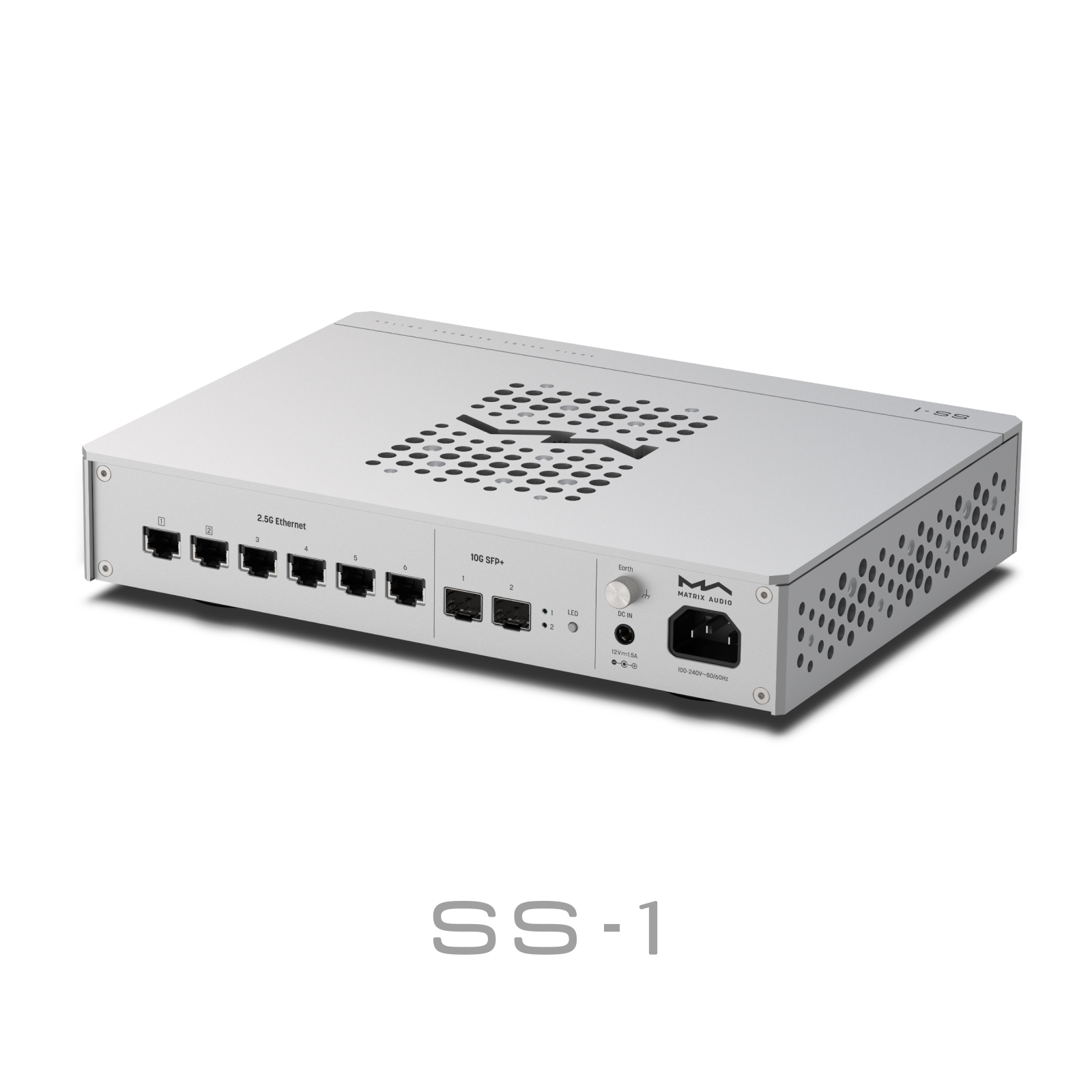

SS-1

2x 100Mbps/10Mbps RJ45



4x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45



2x 10Gbps SFP/SFP+







External Clock Input

Exclusive on SS-1 Pro



10MHz / 50Ω impedance / Sine wave or square wave input

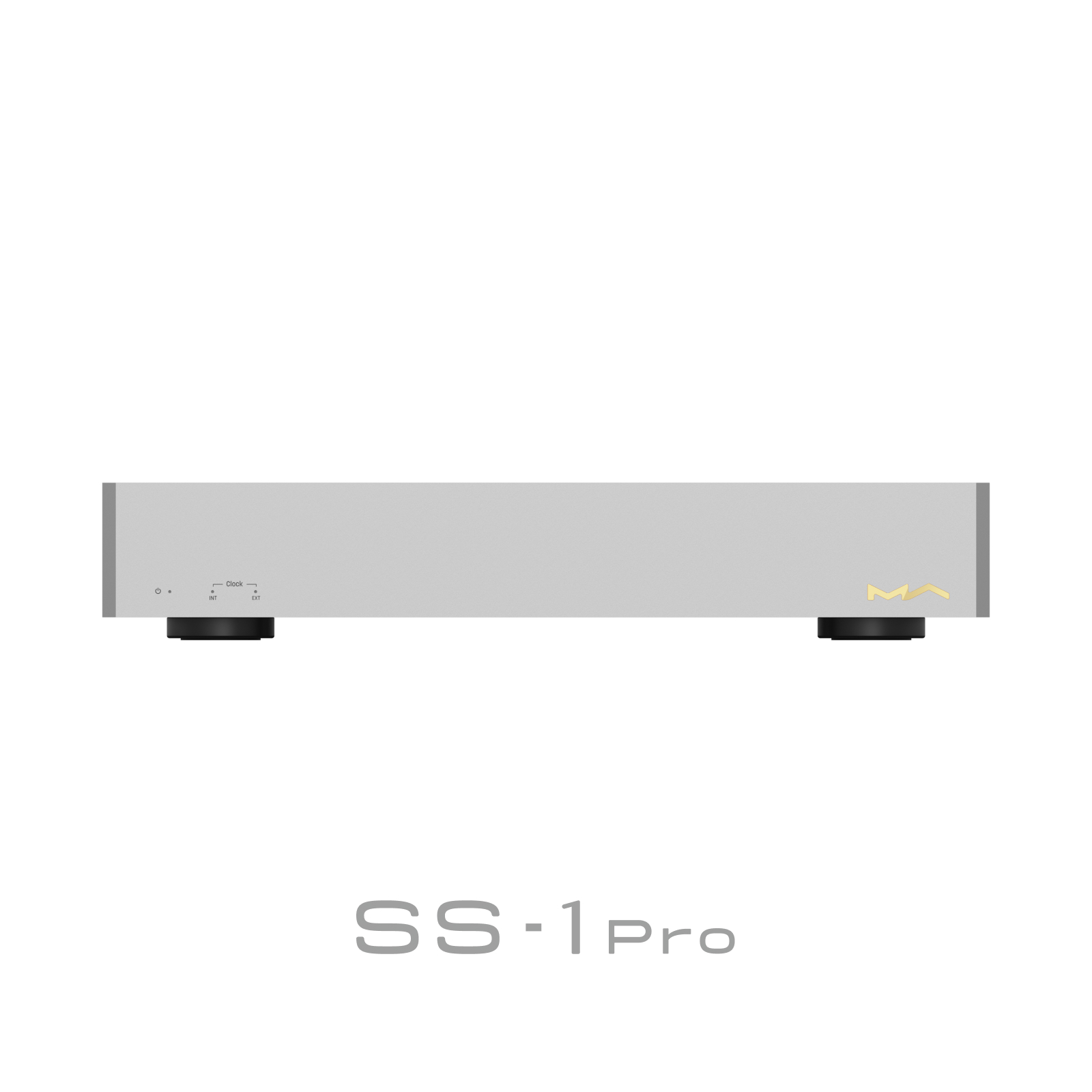

LED Indicators



1x LED - Power/Status





2x LED - Clock mode (SS-1 Pro only)





Each LAN Port has 2 LEDs - Speed, Link & Activity







Max MAC entries



16K MAC address table







Power Specs

SS-1 Pro

AC input

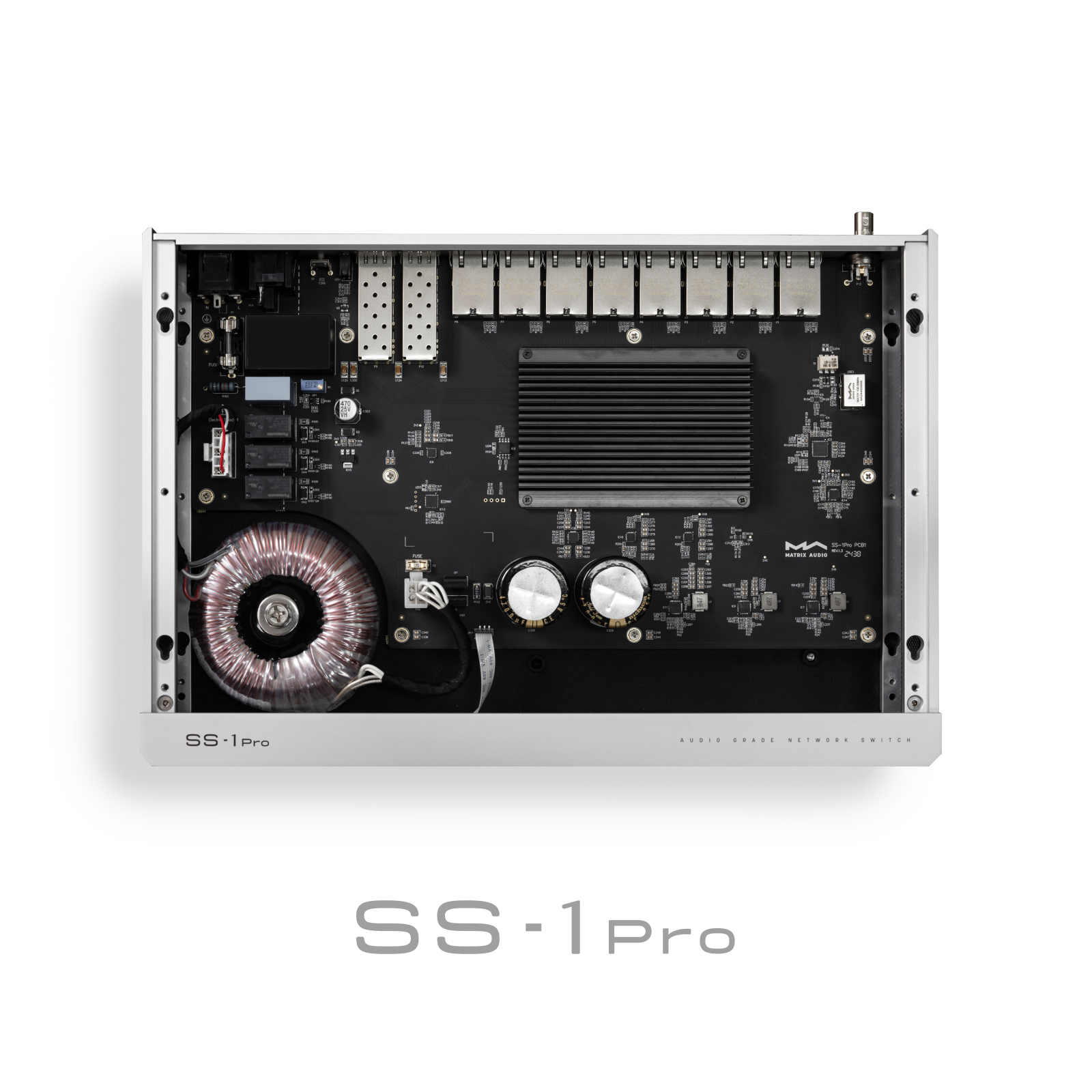

Power Supply Type: Auto voltage range linear power supply



Power Voltage: AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz. Voltage auto adaptive.



Power Consumption: < 15W







SS-1

AC input



Power Supply Type:Wide voltage input switching power supply



Power Voltage: AC 100V-240V 50/60Hz



Power Consumption: < 15W







DC input



External power voltage: DC 12V ±10%



External power wattage: Larger than 18W



Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)











Weight & size

SS-1 Pro

Weight



Dimensions





3.4kg (7.50 pounds)



Width: 330 mm (12.99 inches)



Depth: 235 mm (9.25 inches)



Height: 58.5 mm (2.30 inches)









SS-1

Weight



Dimensions



2.3kg(5.07 pounds)



Width: 280 mm (11.02 inches)



Depth: 206 mm (8.11 inches)



Height: 58.5 mm (2.30 inches)









Accessories



Power cable *1



Quick start guide *1



Warranty card *1







For improvement purpose, specifications subject to changes without prior notice.
