Specifications

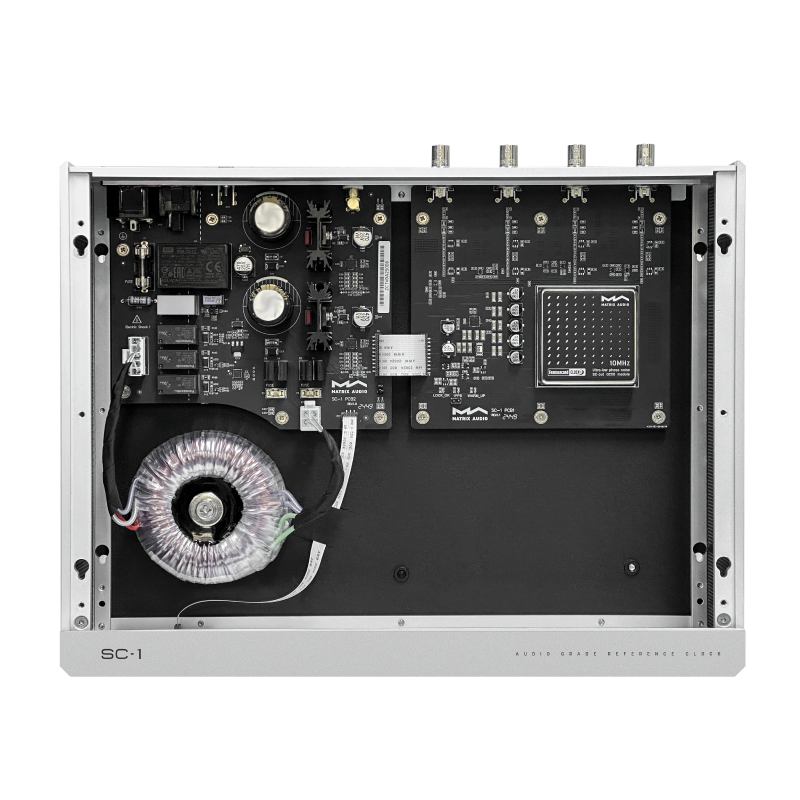

Clock Generator Specs



10.000 MHz ultra-low phase noise oven-controlled SC cut crystal oscillator

Frequency accuracy when shipped:<士0.01ppm

Freauency stabilityvstemperature range,<0.003ppm -40 'C to +70°

CShort term stability:<5E-13 @TaU = 1s

Warm-up time:< 5 min @25 °C



Output Specs

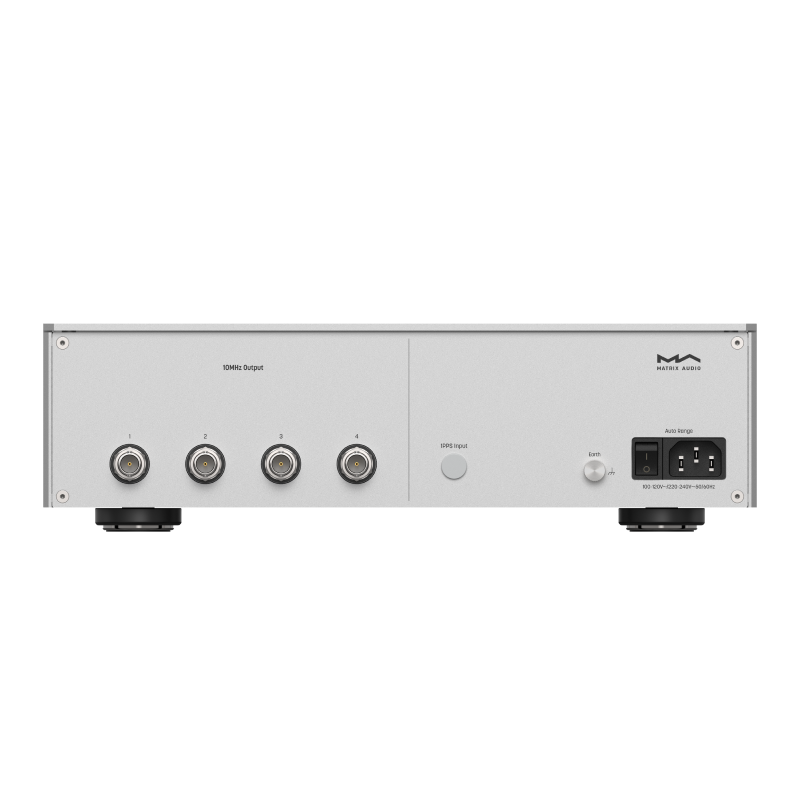

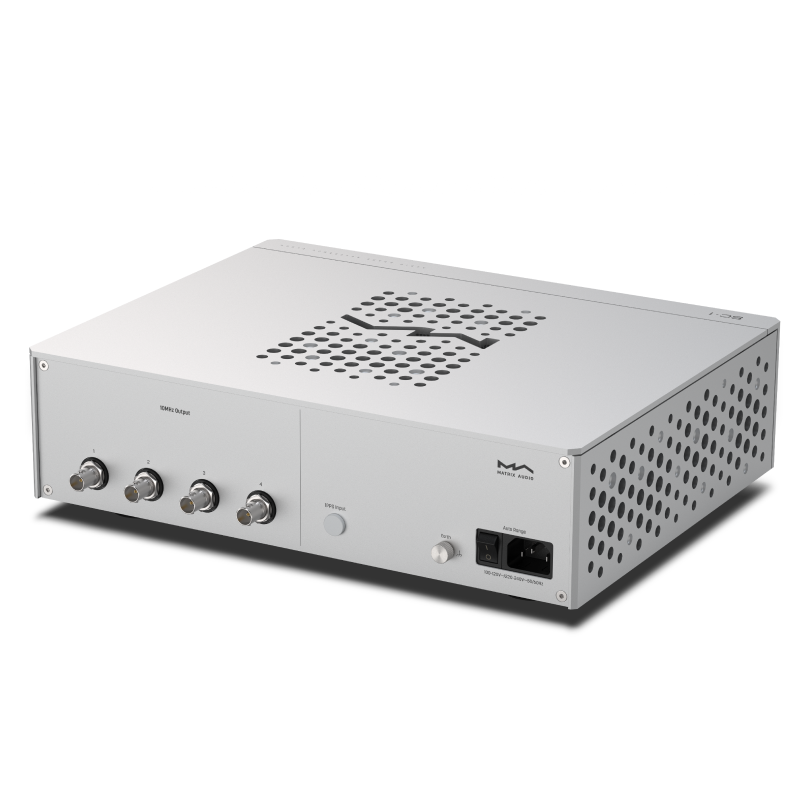

Output Ports 4 x BNC independent driver buffers

Output Waveform Sine wave or square wave (fixed at the factory according to custom requirements)

Output Frequency 10.000 MHz

Output Level 0.5 Vrms @Sine wave / 1 Vrms @Square wave

Output Impedance 50Ω













Phase noise



This Phase noise is measured at output port of SC-1.



1 Hz:≤ -118 dBc/Hz

10 Hz≤ -140 dBc/Hz

100 Hz:≤ -150 dBc/Hz

1000 Hz: ≤ -160 dBc/Hz

Noise Floor: ≤ -170 dBc/Hz



Jitter

Jitter measured at SC-1 output port

20 fs @ 1-100 Hz







Power Specs

Power Voltage: AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz, auto adaptive

Maximum Power Consumption:

< 20W







Weight & size

Weight: 4.4kg (9.7pounds)

Dimensions:



Width:330 mm(12.99 inches)

Depth:267 mm(10.51 inches)

Height:97 mm(3.82 inches)





Accessories

Power cable * 1

Printed material * 1



For improvement purpose, specifications subject to changes without prior notice.
