| SPECIFICATIONS | |
|---|---|
| Product type | Streamer / DAC |

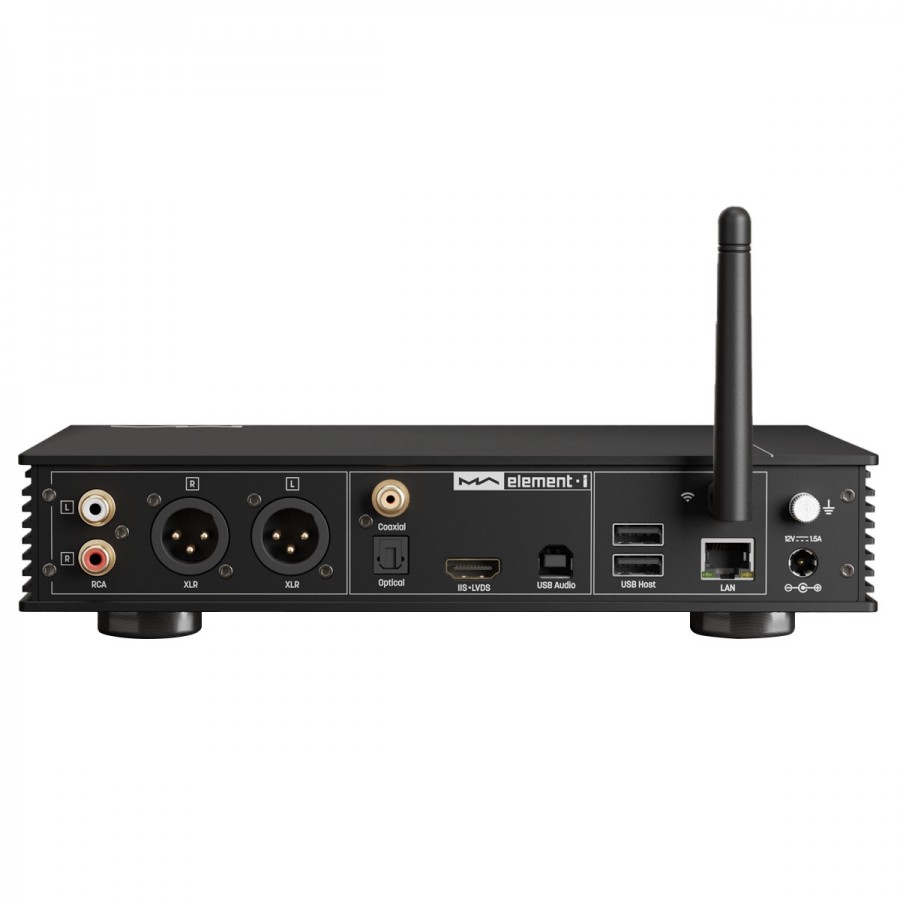

| Inputs | 1x Coaxial S/PDIF 1x Optical Toslink 1x I2S LVDS HDMI 1x USB-B Audio 2x USB-A Host 1x Ethernet RJ45 WiFi |
| Outputs | 1x Balanced XLR 1x Single-ended stereo RCA 1x Jack 6.35mm Headphone output |
| DIGITAL INPUTS SUPPORTED SAMPLING RATES | |
|---|---|
| Coaxial Optical |
PCM up to 24bit 192kHz DSD DoP up to DSD64 |
| I2S LVDS | PCM up to 32bit 768kHz DSD DoP up to DSD256 DSD Native up to DSD1024 |
| USB Audio | PCM up to 24bit 384kHz DSD DoP up to DSD128 DSD Native up to DSD256 |
| XLR LINE OUTPUT | |
|---|---|
| SNR | > -127dB |
| THD+N | < 0.00025% @ 1kHz < 0.00027% @ 20Hz-20kHz |
| Frequency response | 20Hz - 20kHz +/-0.05 -3dB @ 150kHz |
| Crosstalk | > -143dB |
| Amplitude | 4.0Vrms @ 0dB |
| RCA LINE OUTPUT | |
|---|---|
| SNR | > -120dB |
| THD+N | < 0.00040% @ 1kHz < 0.00045% @ 20Hz-20kHz |
| Frequency response | 20Hz - 20kHz +/-0.05 -3dB @ 100kHz |
| Crosstalk | > -114dB |
| Amplitude | 2.0Vrms @ 0dB |
| HEADPHONE OUTPUT | |
|---|---|
| SNR | > -111dB @ 2Vrms |
| THD+N | < 0.0006% @ 1Vrms |
| Frequency response | 20Hz - 20kHz +/-0.1 -3dB @ 47Hz |
| Output impedance | < 0.6Ω |
| Output power (1% THD) | 1320mW @ 33Ω 248mW @ 300Ω 124mW @ 600Ω |
| Gain | +12dB |
| NETWORK | |
|---|---|
| LAN | 10BASE-T / 100BASE-TX |
| WLAN | 2.4GHz, IEEE 802.11 a/b/g/n |
| MA PLAYER | |
|---|---|
| Supported formats | MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 |
| POWER SUPPLY | |
|---|---|
| Supply voltage | 12V DC <=1.67A |
| Standby power consumption | < 1W |
| Sleep power consumption | < 5W |
| Max power consumption | < 20W |
| GENERAL | |
|---|---|
| Dimensions | 240 x 220 x 55mm |
| Weight | 1.5kg |

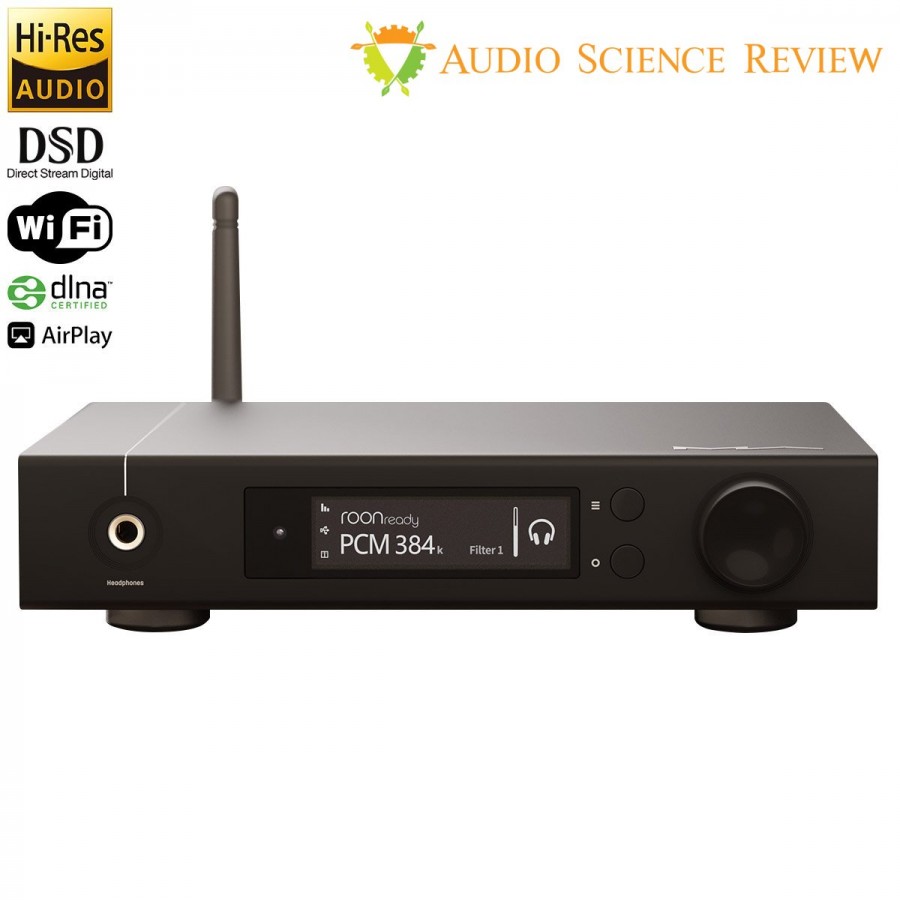

| Package | 1x Matrix Element I 1x Remote Control 1x Power supply 1x USB Cable |
