Dual USB Modes

The SMSL M20 adapts to every setup with two USB options - USB 1.1 for consoles like PS5 and Switch, and USB 2.0 for your PC - so you can switch seamlessly between immersive gaming and hi-fi music.

Powerful Amplifier Output

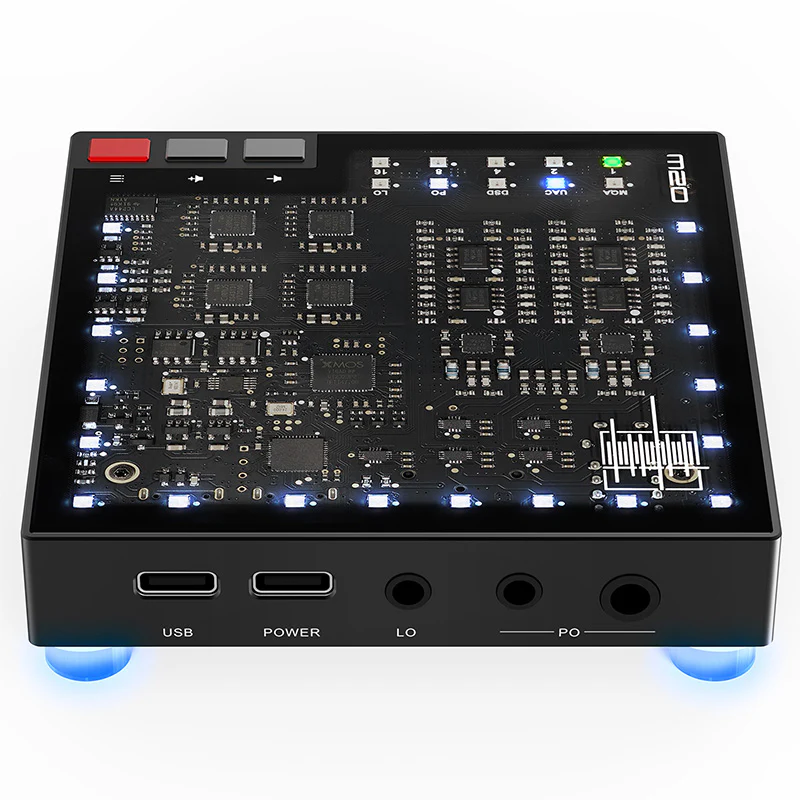

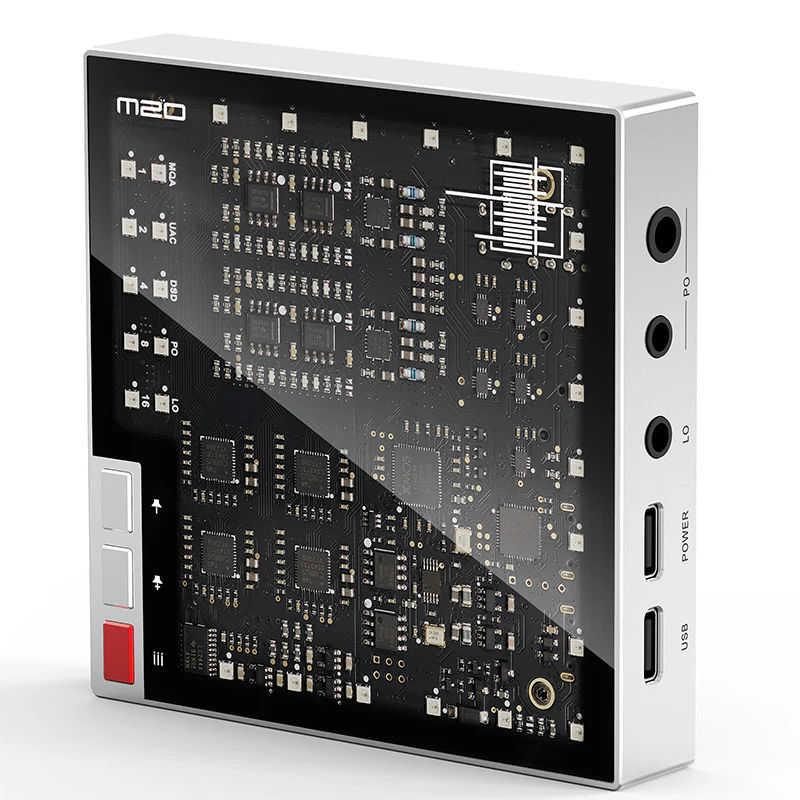

The built-in headphone amp delivers up to 700 mW at 32 Ω, driving a wide range of headphones with crystal-clear sound. Connect via 3.5 mm line out or choose between 3.5 mm and 4.4 mm headphone jacks for optimal flexibility.

Customizable PCM Filters

Fine-tune latency and phase response with five selectable PCM filter modes: fast low-latency, fast phase-compensated, slow low-latency, slow phase-compensated, and non-oversampling.

Studio-Authenticated MQA and Hi-Res Playback

Integrated MQA decoding (including MQA CD support) delivers studio-authenticated tracks in their purest form. Native DSD256 and PCM up to 32-bit/768 kHz ensure uncompromised, ultra-high-resolution playback.

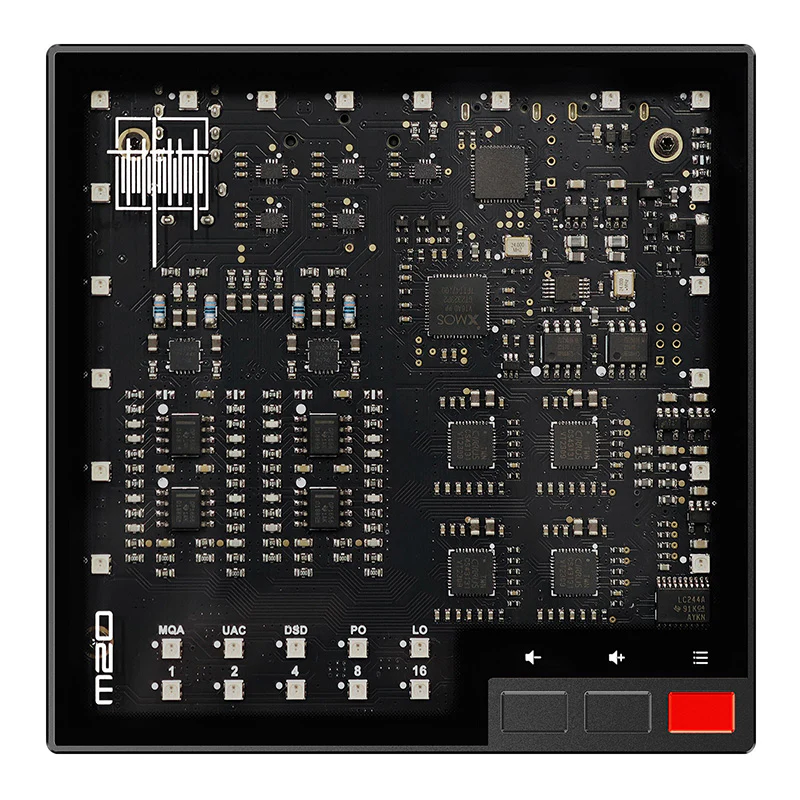

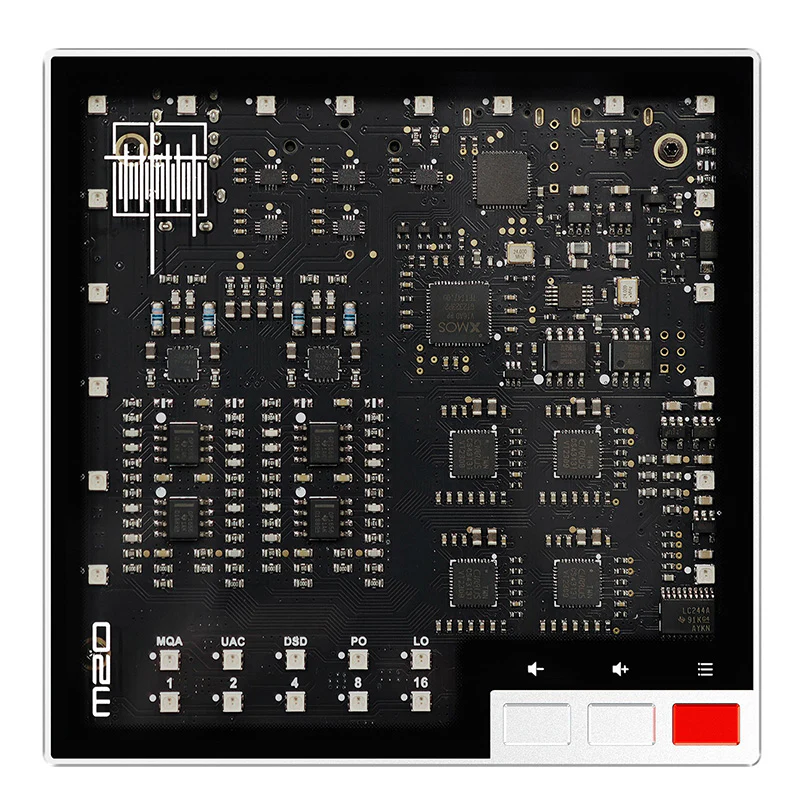

Premium DACs and Processing

Four Cirrus Logic CS43131 DAC chips and a third-generation XMOS XU-316 processor work together to capture every detail, offering both audiophiles and gamers an exceptional audio experience.



Technical Details

DAC Chip
Cirrus Logic CS43131 x4
Input
USB Type-B
Outputs
3.5 mm Line, 3.5 mm Headphone, 4.4 mm Balanced
Output Power
700 mW @ 16 Ω, 700 mW @ 32 Ω, 350 mW @ 64 Ω, 160 mW @ 150 Ω, 80 mW @ 300 Ω, 40 mW @ 600 Ω
Output Level
2.5 Vrms (3.5 mm), 5 Vrms (4.4 mm), 2.5 Vrms (Line Out)
Output Impedance
Line Out 22 Ω, Headphone Out ~0 Ω
Dynamic Range
119 dB (3.5 mm / Line Out), 124 dB (4.4 mm)
SNR
119 dB (3.5 mm / Line Out), 124 dB (4.4 mm)
THD+N
0.0001% (-115 dB)
PCM Sampling
44.1 kHz - 768 kHz (16/24/32-bit)
DSD Support
DSD64, DSD128, DSD256
Power Consumption
< 15 W
Standby Power
< 0.5 W
Dimensions
160 mm x 160 mm x 43 mm
Weight
393 g
USB Compatibility
Windows 7/8/8.1/10/11, Android, iOS, macOS 10.6+, Linux
Inside the Box
  • 1 x SMSL M20
  • User Manual
