KD01-PRO HI-END Portable DAC/AMP Dongle

  • DAC Chip: ESS 9039SPRO
  • Dynamic Range: 135dB
  • Power Supply: TI Ultra-Low Noise LDO
  • Output: 8-Channel Parallel
  • THD: 0.0001%
  • SNR: 132dB
  • Gain: 2 Levels (High/Low), 7dB
  • Line Out Mode Supported

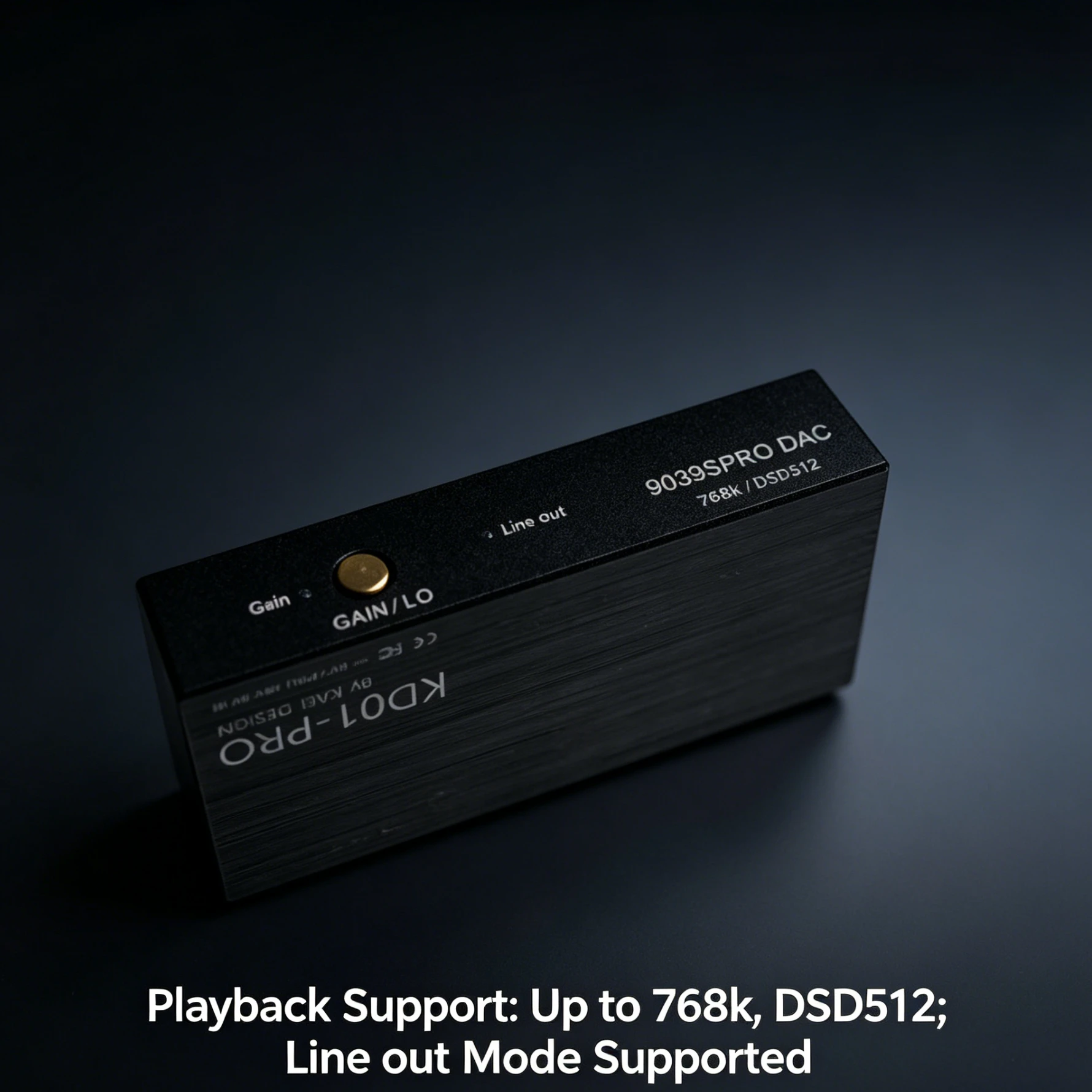

  • Max Decoding: PCM 768kHz / DSD512
  • Op-Amps: Dual ADI 8397 High-Power Op-Amps

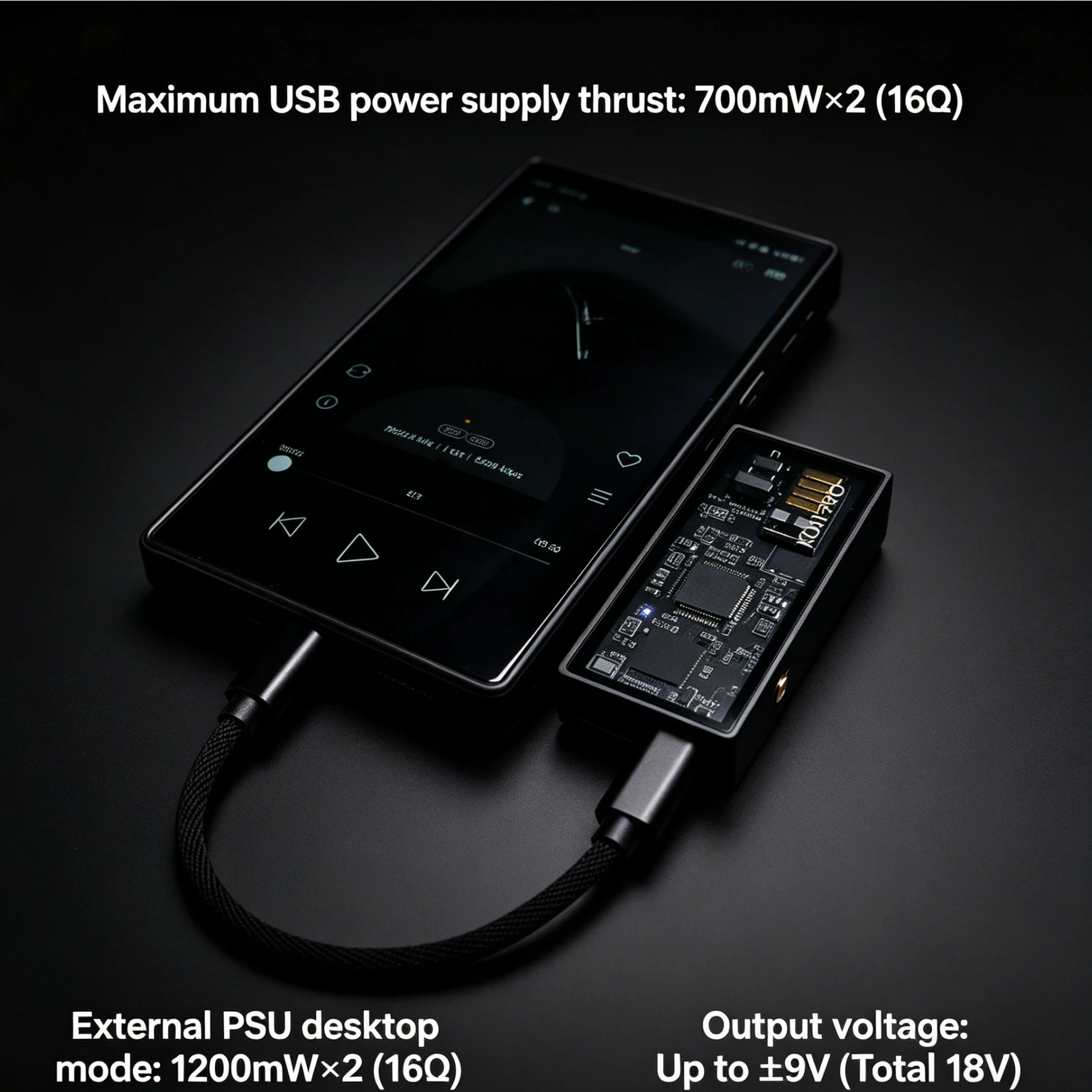

  • USB Power Output: 700mW×2 @16Ω
  • External PSU Desktop Mode: 1200mW×2 @16Ω, ±9V(18V)

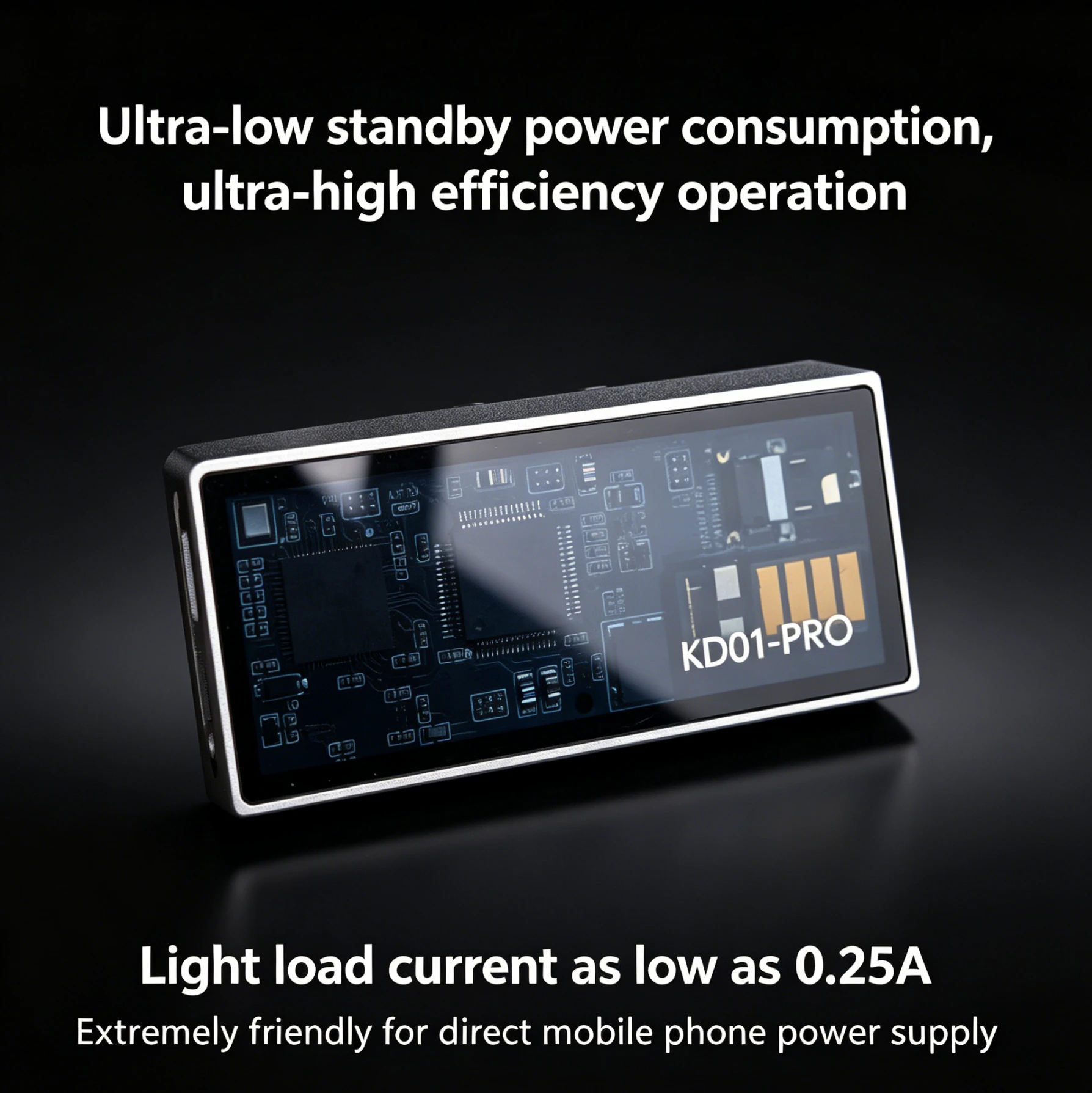

  • Power Consumption: Ultra-Low Standby, 0.25A Light Load, Phone-Friendly

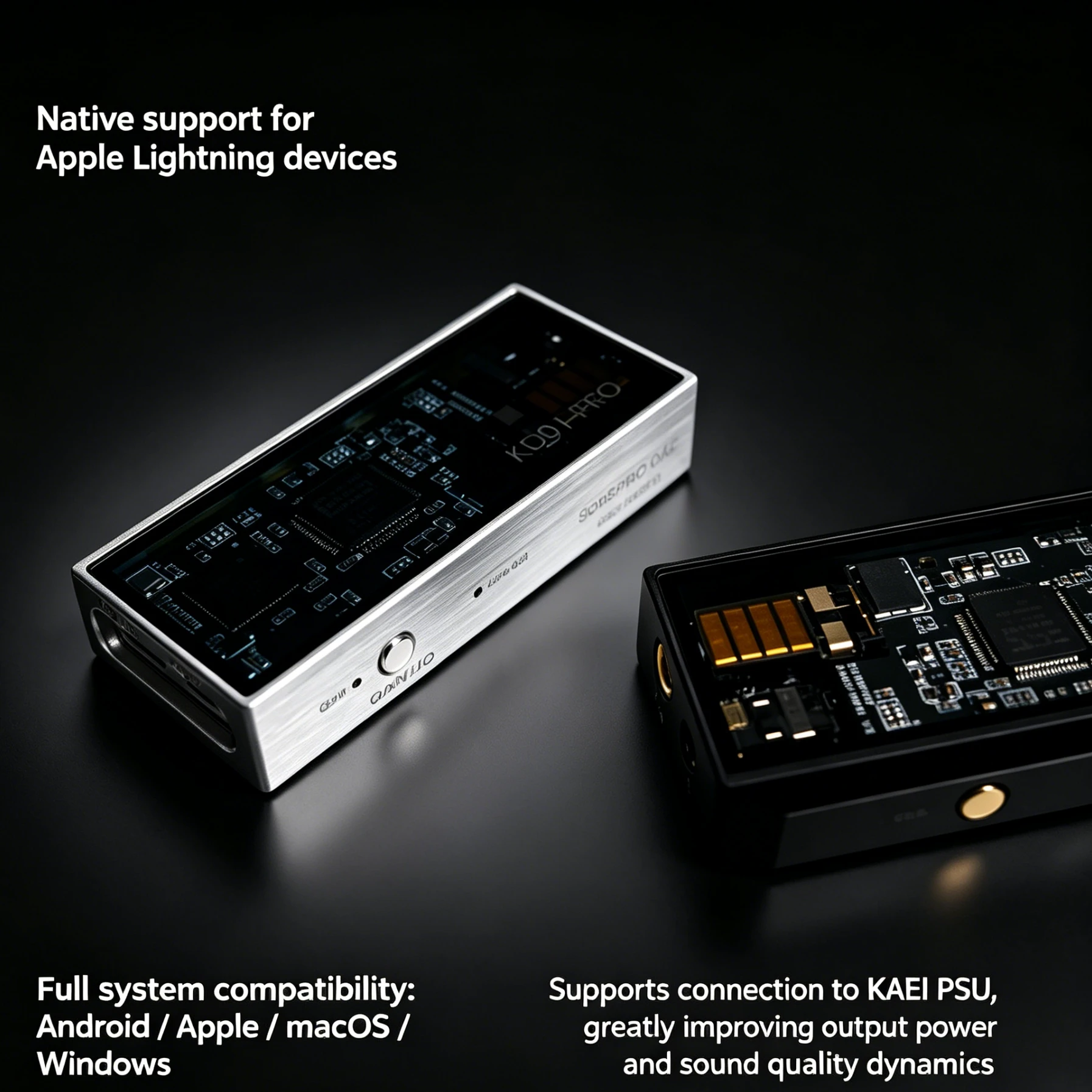

  • Compatibility: Apple Lightning/Android/Mac/Windows
  • Works with KAEI PSU for Enhanced Power & Dynamics

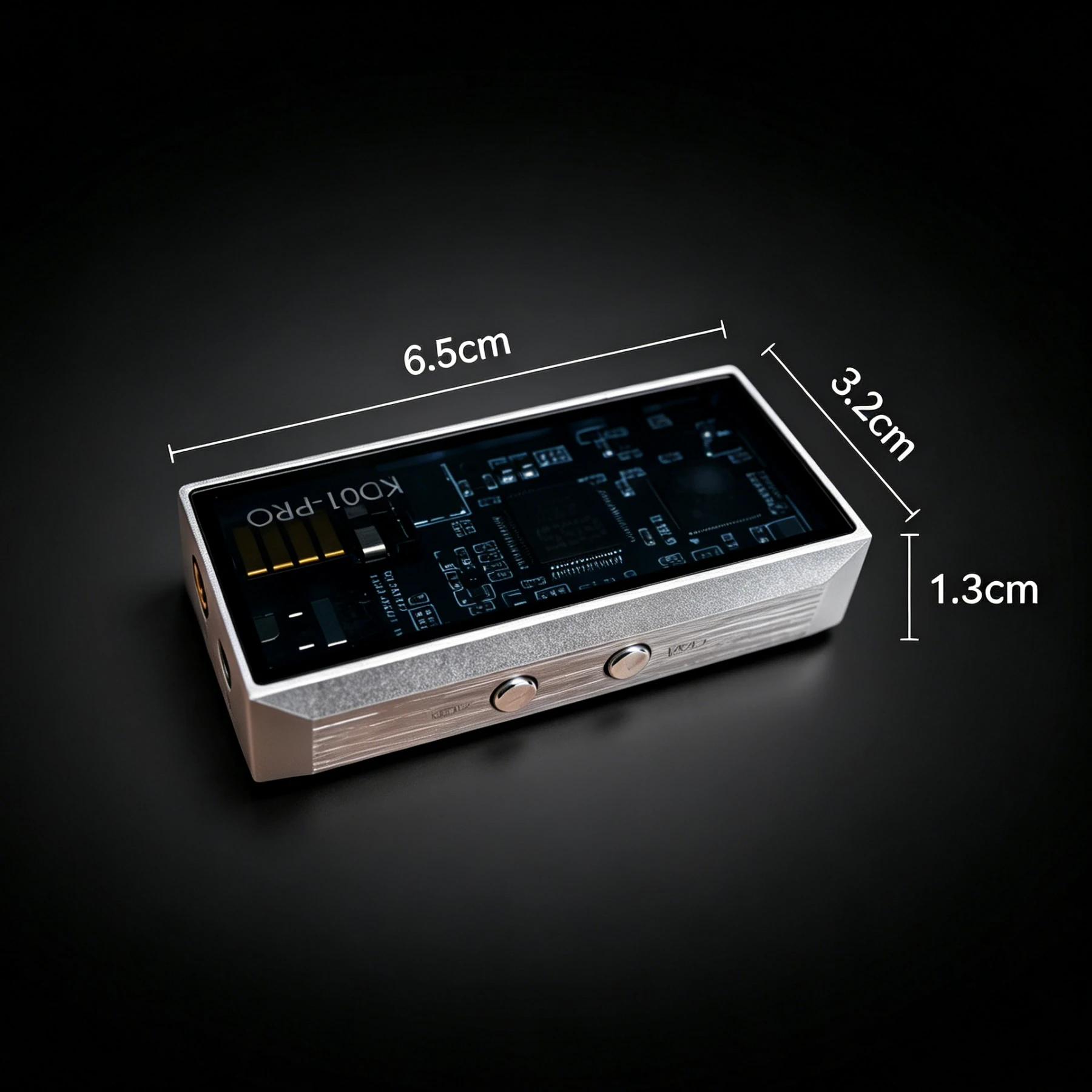

  • Dimensions: 3.2cm×6.5cm×1.3cm
