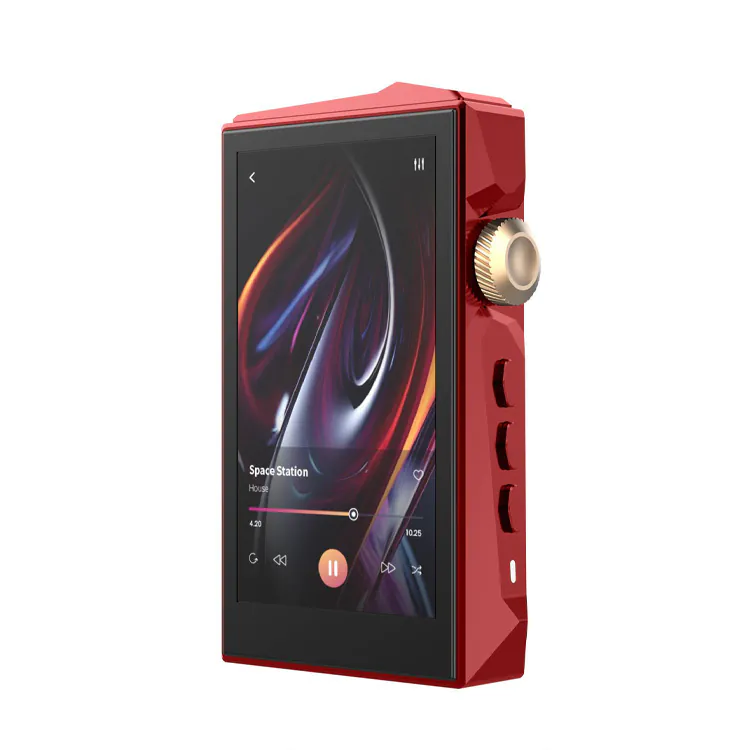

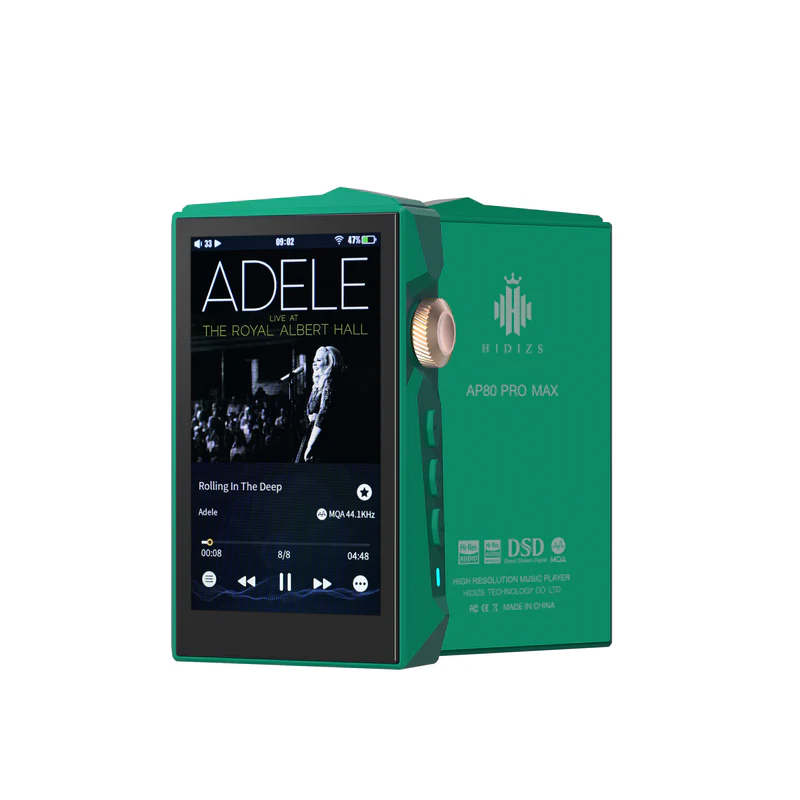

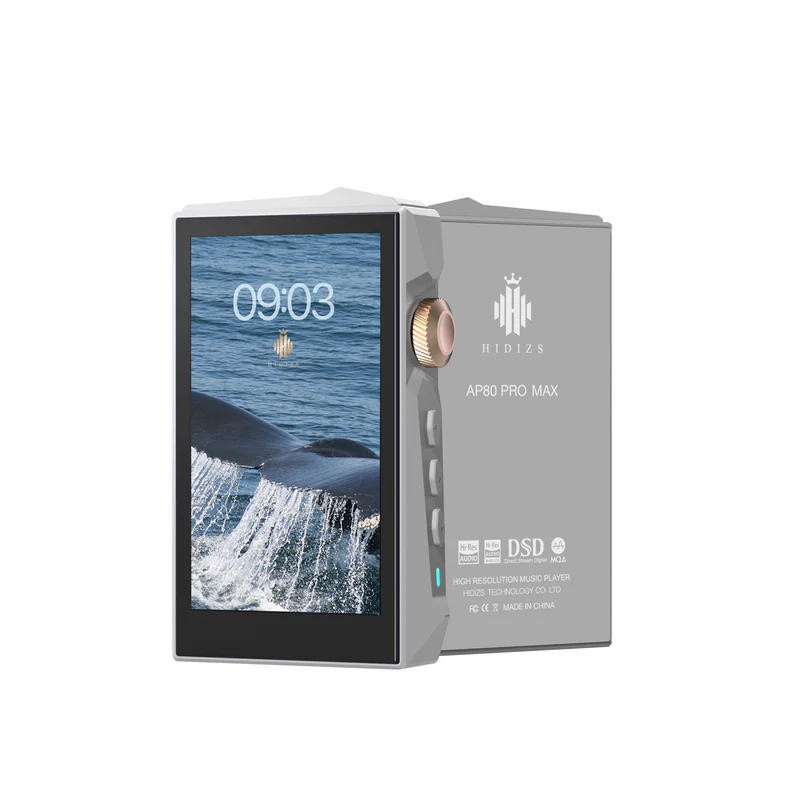

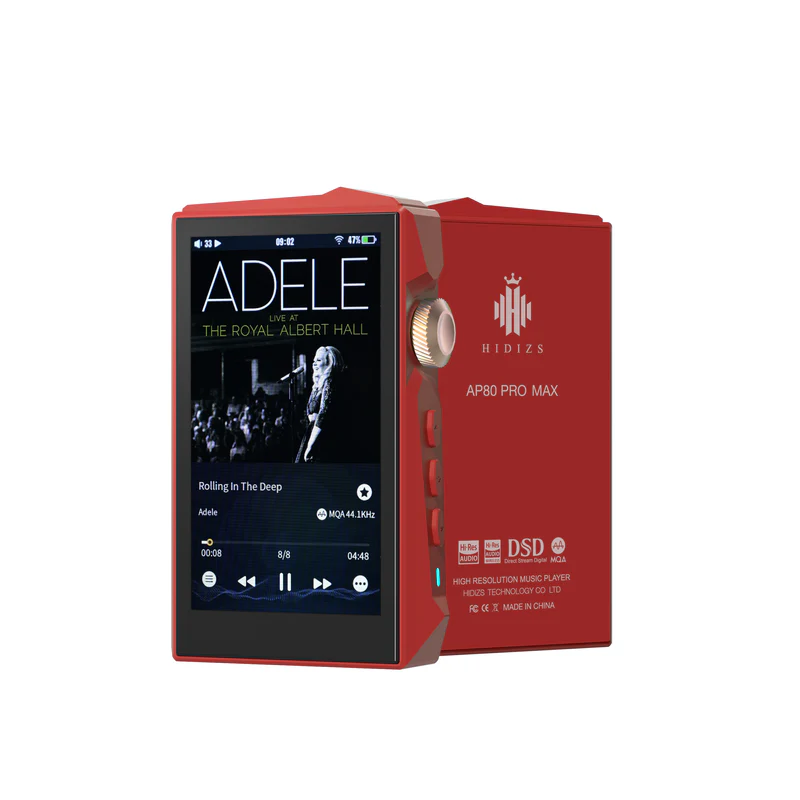

Hidizs AP80 Pro MAX

AP80 PRO MAX Specifications​

General
Weight: 81g
Dimensions: 82.8 × 51 × 15.5mm
Colors: Black, Gray, Blue
Battery: 1,300mAh Lithium Polymer, with a charging time of about 1 hour.
Battery Life: 8-10 hours balanced (BAL) and 10-12 hours normal (PO) playtime, with a 60-day standby time.
Storage: Supports up to 2T via a Micro SD (TF card).

Hardware & Components
Master Chip: Ingenic X1600E
DAC Chip: ES9219C X2
MQA Processing Chip: ES9219C
Housing: Aluminum Alloy CNC Integration
Rear Cover: Stereoscopic Glass (front and rear)
Display: 2.95" (480x640) IPS HD Touchscreen
Buttons: Japanese ALPS volume knob and 3 physical play buttons (Play/Pause, Previous Track, Next Track).

Audio Performance
Recommended Earphone Resistance: 8-250Ω
Single-ended Audio Output:
Rated Output Power: 112mW + 112mW @32Ω
Frequency Response: 20Hz-90KHz
Total Harmonic Distortion+Noise (THD+N): 0.0007% (1kHz)
Dynamic Range: 120dB (±2dB)
Signal-to-Noise Ratio (S/N Ratio): 119dB (±2dB)
Channel Separation: 78dB (±2dB)
Balanced Audio Output:
Rated Output Power: 340mW + 340mW @32Ω
Frequency Response: 20Hz-90KHz
Total Harmonic Distortion+Noise (THD+N): 0.0005% (1kHz)
Dynamic Range: 122dB (±2dB)
Signal-to-Noise Ratio (S/N Ratio): 120dB (±2dB)
Channel Separation: 110dB (±2dB)

Connectivity & Features
OS: HiBy OS (Linux-based)
Online Streaming: Tidal, Qobuz
Wireless: Bluetooth 5.1 (with SBC, AAC, APT-X, LDAC, HiBy UAT support) and 2.4GHz WiFi (with Airplay, DLNA, HiByLink support).
Ports:
Charging/Data: USB-C 2.0 (Type-C)
Analog Audio: 3.5mm PO/LO and 4.4mm balanced output
Digital Audio: Coaxial (via USB-C port)
Other Features:
Pedometer Sensor
Play Mode: Sequential, Shuffle, Single Loop, List Loop
Present Equalizer: 10-band Dynamic EQ adjustment with customized EQ settings
Supports headphones with a mic
Firmware Updates: TF card (FAT32) or OTA (Over-The-Air)
USB Audio (DAC): Supports DSD64/128/256, 32bit/384kHz PCM, and MQA 16X
