The mono power amplifiers that have raised the eyebrows of the audio world.........
Fosi Audio V3 Mono Mini Power Amplifier
Engineered for Audiophiles - Optimal Choice for Home Audio Systems
In 2023, following the launch of the V3 stereo amplifier, we received numerous valuable suggestions and feedback from our global audio lovers. We listen intently, record diligently, and develop with dedication, ultimately striving to transform your suggestions and ideas into realitythe V3 mono.
Input: RCA, XLR, ¼" TRS; Output: Passive Speaker (supports banana plug or bare wire connection)
SINAD: XLR--101dB; RCA--93dB; SNR: 123dB
Rated Power Output: 48V/5A 240W @ 4
Each Mono comes with it's own dedicated 48v power supply - buy two and you will get 2 x 48v Power Supplies - this is the premium connection set-up for maximum performance.
Post-Filter Feedback Technology Integrated
Significantly reduces distortion, enhances linearity and frequency response to get superior sound.
Compact Yet Powerful
Crafts an immersive sound experience, satisfying your craving for superior musical quality.
Accurate Imaging with Zero Crosstalk
Enhances stereo depth and soundstage accuracy for a purer audio experience.
Easily Replaceable DIP8 Dual Discrete Op-amps
Meeting your pursuit of a personalized audio experience
Provides You with Flexible Connectivity Options
Effortlessly switched by a toggle switch, easily adapted for both home and professional scenarios.
Advanced Cooling Design
Guarantees long-term efficient operation of the amp, prevents overheating.
With Minimalist Design
Effortlessly integrates into various settings like home theatre, study room, desktop, and studios.
Automatic Signal Sensing
Enters standby after 10 minutes of no signal input, effectively reducing power consumption.
NICHICON Caps, Japanese
Ensure superior sound clarity, longevity, and stable electrical performance, enhancing the fidelity of audio reproduction.
WIMA Caps, German
Provide exceptional sound quality and signal stability, greatly enhancing the audio experience.
Sumida Inductor, Japanese
Offers superior signal purity and noise reduction, elevating the amplifier's sound performance.
ELNA Caps, Japan
Ensure enhanced audio clarity and stability, contributing to a richer sound experience.
- PFFB Load Independence (Post-Filter Feedback Technology)
- 240W Rated Power Output
- Op-Amp Rolling: SS3602, MUSES02, OPA2134PA
- Supports XLR Balanced And RCA Inputs
- Mini Monoblock Amplifier: Crafted for HiFi audiophiles, the V3 Mono allows you to drive a single passive speaker with one amp, delivering up to 240W @4 of rated power. It offers the flexibility to build your home audio 2/3/4/5-channel system effortlessly. The V3 Mono can serve as a power amplifier for multi-channel AVRs, complementing the output power to easily drive high-power speakers in home theatre systems.
- Innovative Cutting-Edge Technology: Fosi Audio has achieved a technological breakthrough through independent research and development by applying PFFB (Post-Filter Feedback) technology to the V3 Mono for the first time. This effectively overcomes the common load dependency issues of Class-D amplifiers, improving distortion and enhancing frequency response, thereby significantly enhancing sound quality and performance.
- Audiophile-Grade Components: The V3 Mono incorporates the high-end TPA3255 Class-D amp chip, paired with well-known components such as Japanese Nichicon filter capacitors, ELNA capacitors, German WIMA capacitors, and Japanese Sumida inductors, etc. Additionally, it features an upgraded four-layer PCB. This combination not only ensures high power output but also achieves a THD as low as 0.006%, a SINAD of 101dB, and an SNR of 123dB.

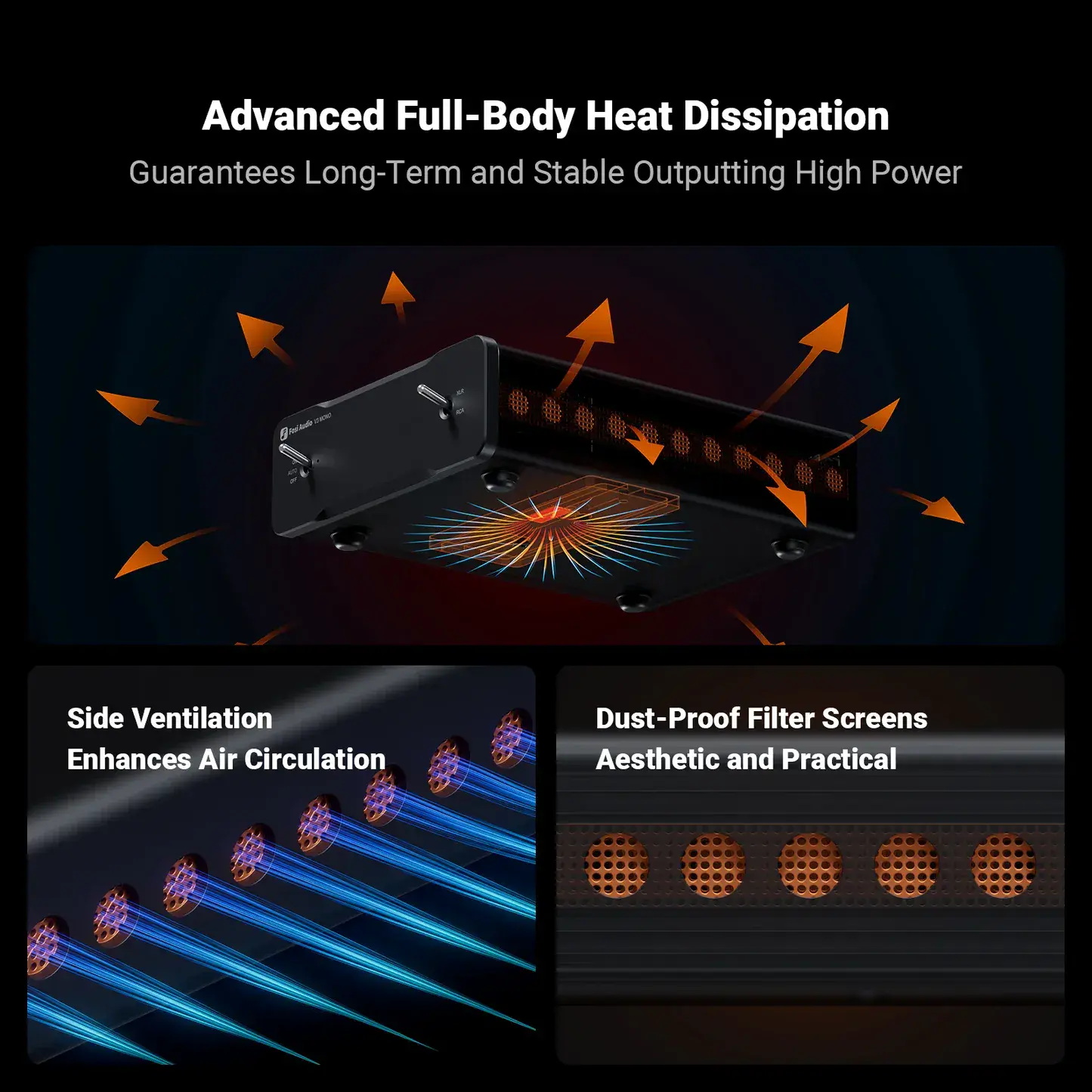

- Advanced Cooling: Utilizing Fosi Audio's pioneering full-body heat dissipation design, the TPA3255 amplifier chip is placed at the bottom and tightly integrated with the chassis, allowing heat to be effectively dissipated through the casing. Coupled with dual side ventilation holes that enhance internal airflow, this ensures the V3 Mono can deliver stable, high-power output over extended periods.

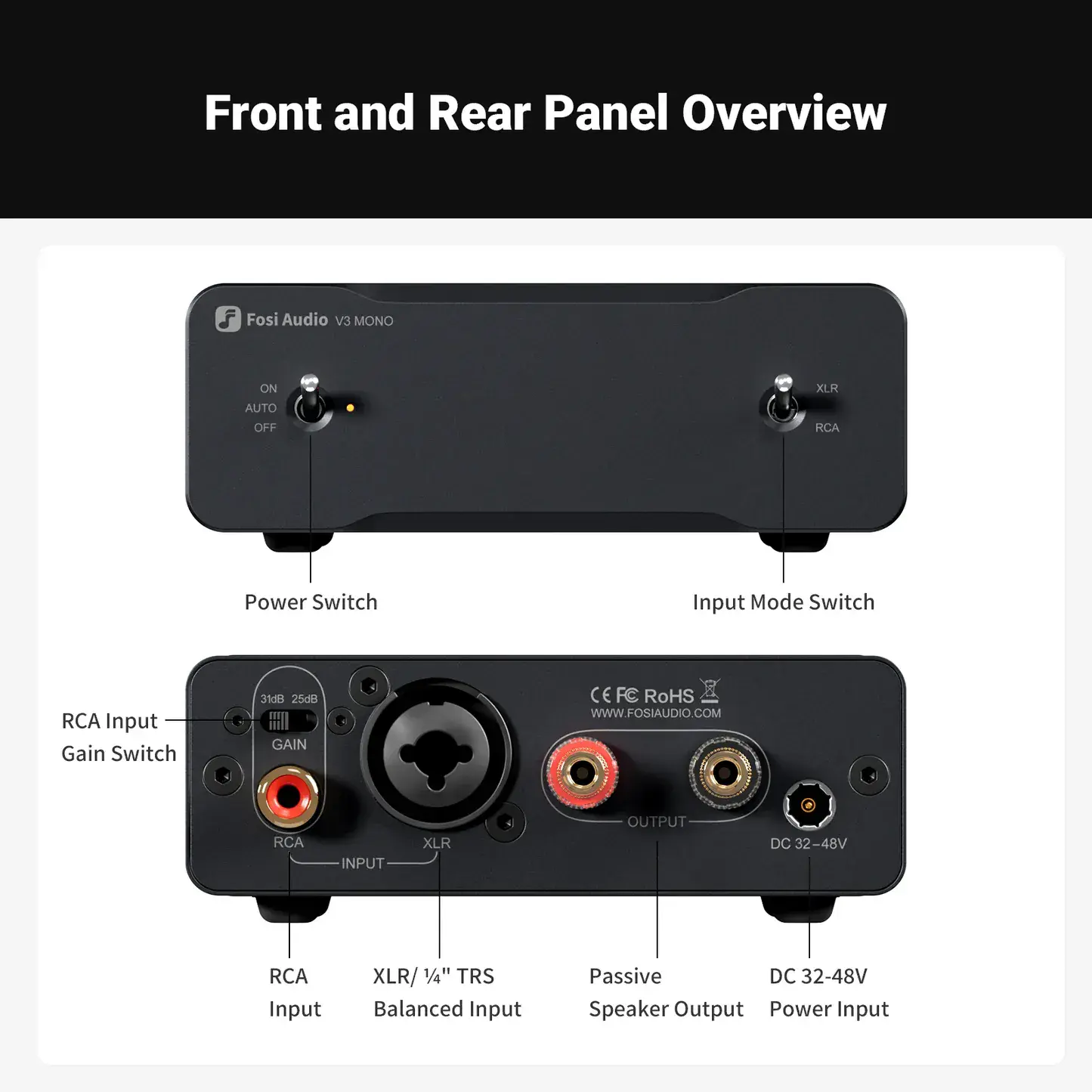

- User-Friendly Design: Supports both XLR/¼" TRS balanced and RCA single-ended(with gain selection) inputs, with an easy toggle switch for selection. Additionally, it features an auto power/signal sensing mode to enhance energy efficiency. You can also customize your preferred sound signature by replacing the stock NE5532 op-amps, supporting DIP8 dual discrete op-amps such as Sparkos SS3602, MUSES02, OPA2604, Burson V5i, V6, V7, and more.
- Channel : 1.0
- Amplifier Chip : Texas Instruments TPA3255
- Input : RCA, XLR, ¼" TRS
- Output : Speaker Output (supports banana plug or bare wire connection)
- SINAD : XLR: 101dB ; RCA: 93dB
- SNR : 123dB
- Dynamic Range : 123dB
- THD : 0.006%
- Gain : XLR/¼ TRS: 20dB ; RCA: 25dB, 31dB;
- Terminal Impedance : 2-8
- Rated Power Output : 48V/5A--240W@4
- Frequency Response : 10Hz-30kHz±0.06dB
- Input Voltage Range : DC 32-48V
- Standard PSU : 48V/5A

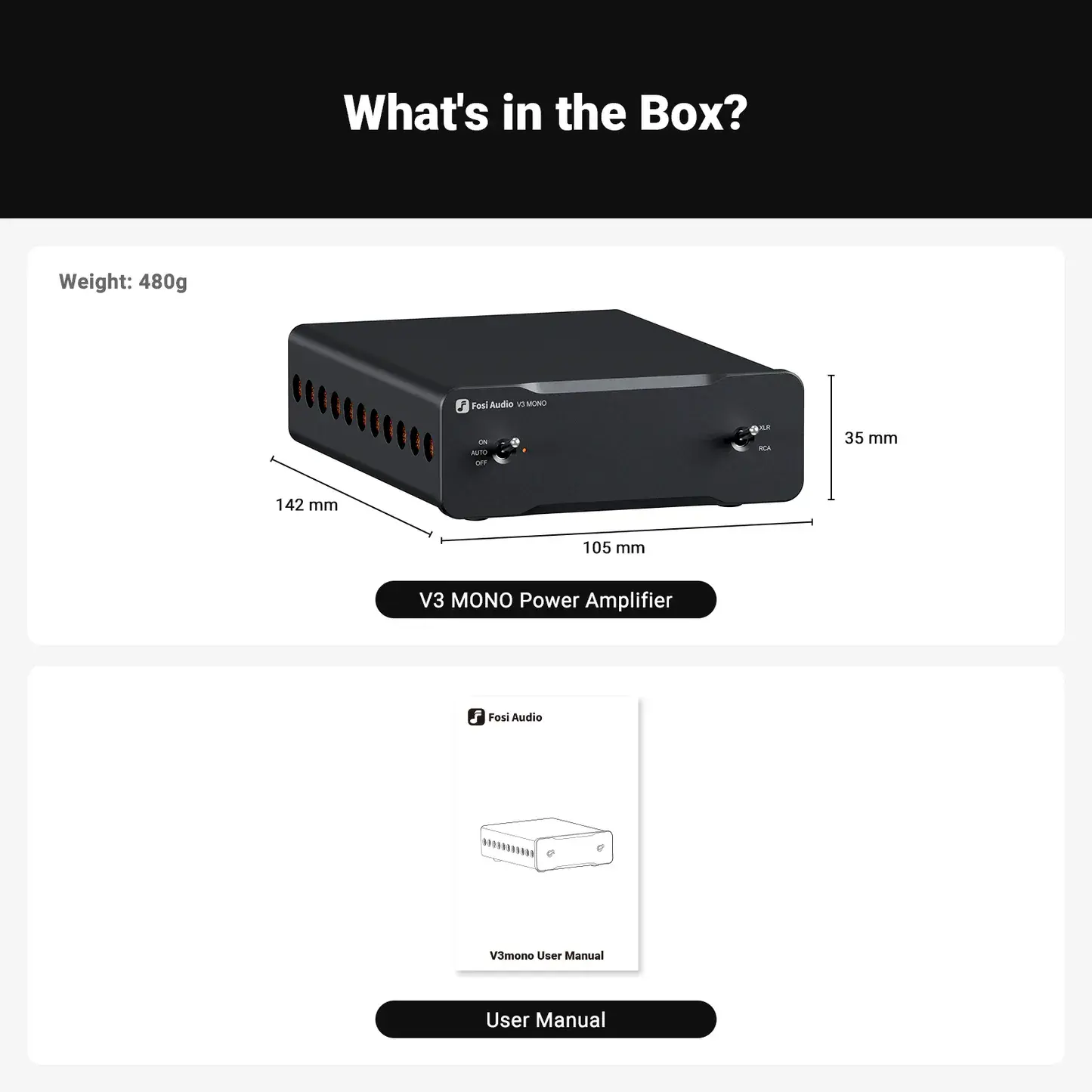

- Product Dimensions and Weight : 14.2 x 10.67 x 4.09 cm; 750 g
