Celest Wyvern Pro Mic

Wyvern background:-

Wyvern, the primordial god of Chinese mythology, also known as Feilong or Huanglong. Wyvern was born of Mao Du and Yu Jia, and originally resided in the heavenly world. It created the earth and gave birth to the phoenix and unicorn. Wyvern has nine heads, each with a different face and color. Its body is covered with scales and it has wings and four giant claws. It can breathe fire, summon wind and rain, and when flying in the sky or underground, it causes thunder and lightning. It controls the winds and rains between heaven and earth. Legend has it that during the time of Pangu, Huangdi rode on Wyvern and defeated the war god Chi You and killed the giant Kua Fu. Wyvern also drew the outline of rivers with its tail and helped Yu the Great control floodwaters. During this time, it worked with Yu the Great to capture the water monster Wuzhiqi with iron chains, thus enjoying a high status and prestige.

Shell Design:-

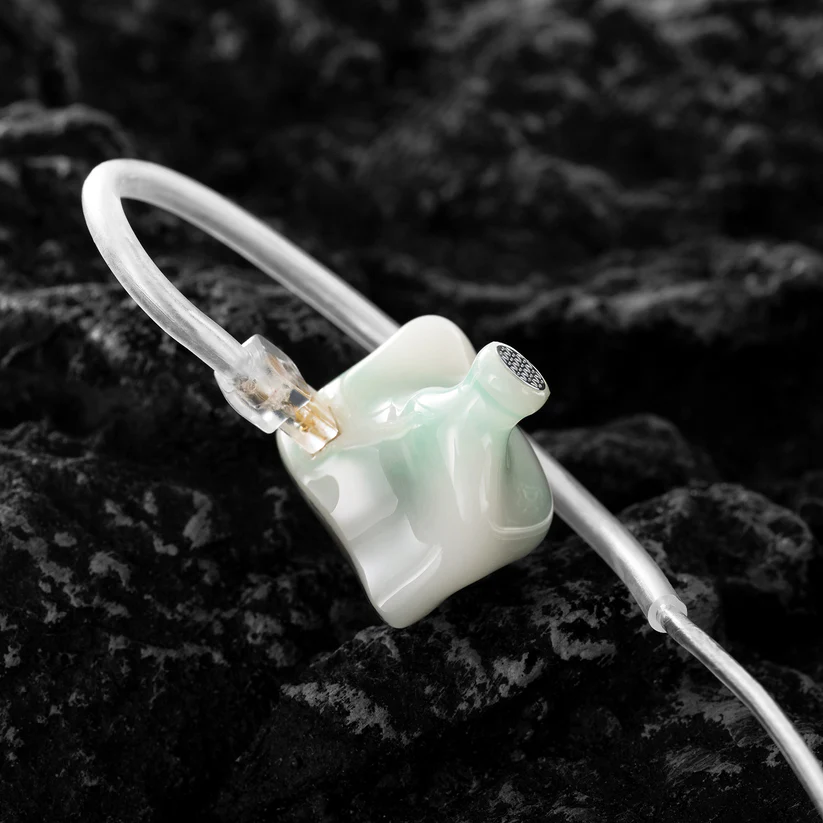

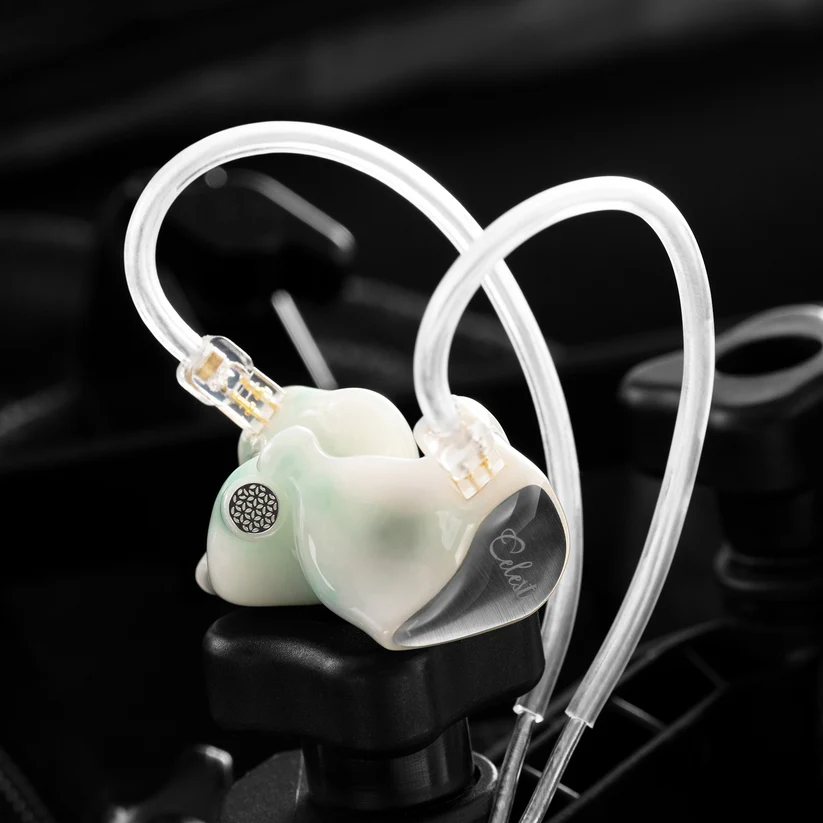

The earphone cavity of the Wyvern is crafted through resin 3D printing technology, with a very smooth curve and transparency. The designer ingeniously incorporates the iconic scale pattern, and embeds silver metal patches on the earphone faceplate, like a piece of a wyvern 's body shedding scales, hard as iron and armored. In the center is Celest's graphic logo, giving it more imagination and creative space.

Tuning Concept:-

Using the 2019 Harman curve as the frequency response target curve, the earphones present a more realistic and natural sound through scientific curve adjustment. In terms of sound performance, the three frequencies are balanced, with moderate low-frequency quantity, centered mid-frequency vocals, delicate and mild sound, transparent and moderately bright high frequencies without being harsh. Smooth instrument transitions, allow for the restoration of music details and control of different styles of music such as pop, classical, and rock.

Driver configuration:-

The Wyvern is equipped with a 10mm diameter LCP liquid crystal diaphragm dynamic driver. The diaphragm material is made of liquid crystal polymer, a new type of polymer material, which has the characteristics of lightness, high frequency response, low distortion, and high reliability. It greatly improves the resolution and separation of sound quality, reduces non-linear distortion and harmonic distortion, accurately reproduces human voice, and naturally connects the sound, making the earphone's resolution, transient performance and high-frequency detail reproduction all better.

Type 1:  Celest Wyvern (Earphones with microphone cable, without detachable microphone)

Earphone Specifications:

Plug：3.5mm

Drivers：10mm LCP Diaphragm Dynamic Driver

Interface: 0.78mm 2pin

Sensitivity：105db

Wearing Type：In-ear

Frequency Response Range：20Hz-20kHz

Impedance：32Ω

Cable Length：1.25m

Cable Parameters:

Material: OFC silver plated

Braiding: 2 core

Diameter: 1.8mm/core

Strands: 14*0.05mm + 250D silver-plated wire * 3C + 39*0.05mm silver-plated wire winding

Cable length: 1.25m

Interface: 0.78 2Pin

Plug material: 4-pole gold plated

Plug: 3.5mm

Protective cover: Silver PVC

Accessories List:

IEM: 1 set:

Eartips: 3 sets

Celest 221 Vocal Eartips X3（S/M/L）

Detachable cable 1pc

User manual 1pc

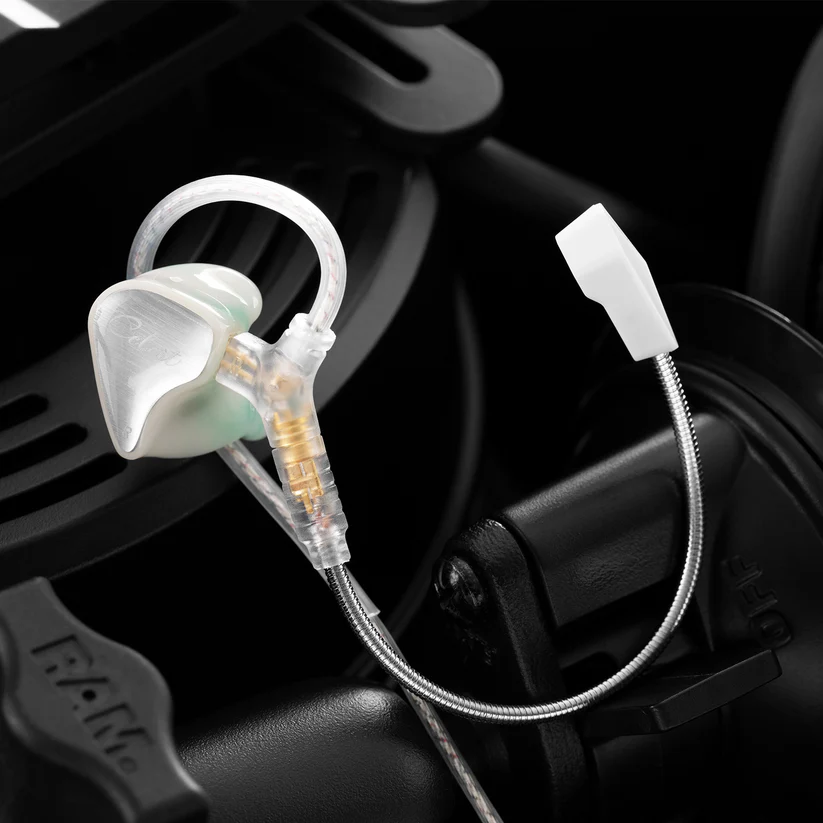

Type 2: Celest Wyvern Pro (Earphones with microphone cable and detachable microphone)

Earphone Specifications:

Plug：3.5mm

Drivers：10mm LCP Diaphragm Dynamic Driver

Interface: 0.78 2pin

Sensitivity：105db

Wearing Type：In-ear

Frequency Response Range：20Hz-20kHz

Impedance：32Ω

Cable Length：1.5m

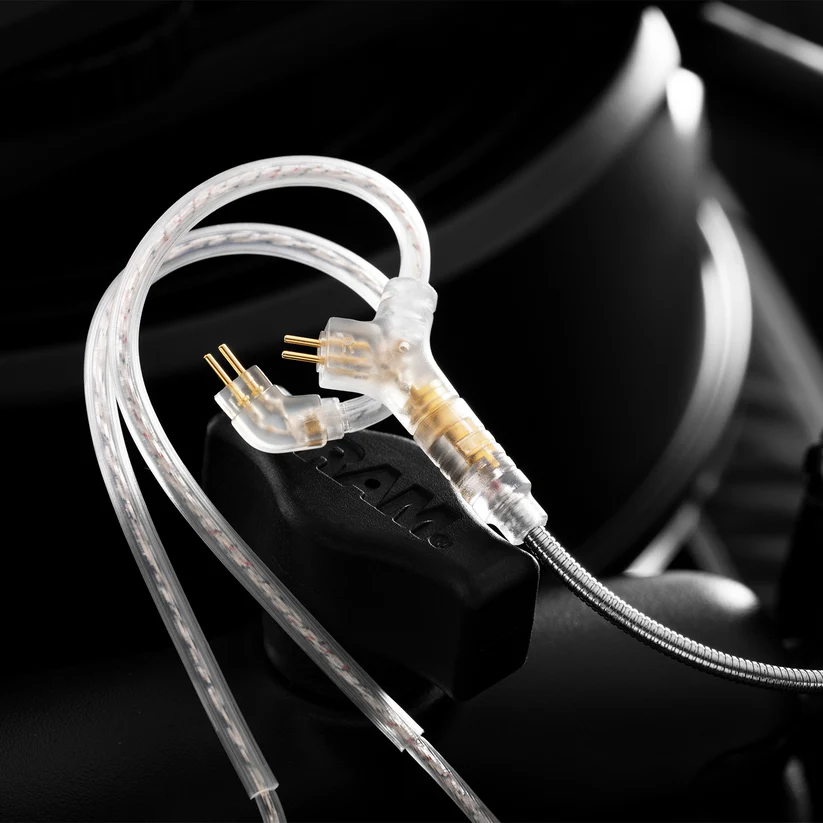

Cable Parameters:

Material: Silver Plated Copper

Braiding: 2 core

Diameter: 1.22mm/core

Strands: 14 strands of 0.05mm

Cable length: 1.5m

Interface: 0.78 2Pin

Plug material: gold plated pure copper

Plug: 3.5mm

Protective cover: PVC80

Eartips:

Celest 221 Vocal Eartips: enhance treble, pleasing vocal

Celest C-07 Balanced Eartips: Sound balanced and holographic

Accessories:

IEM 1 set

IEM cable 1pc

Omni-directional boom mic 1pc

Metal bookmark 1pc

Microphone Sponge Cover 1pc

Eartips 6 sets

Celest 221 Vocal Eartips X3（S/M/L）

Celest C-07 Balanced Eartips X3（S/M/L）

User manual 1pc
