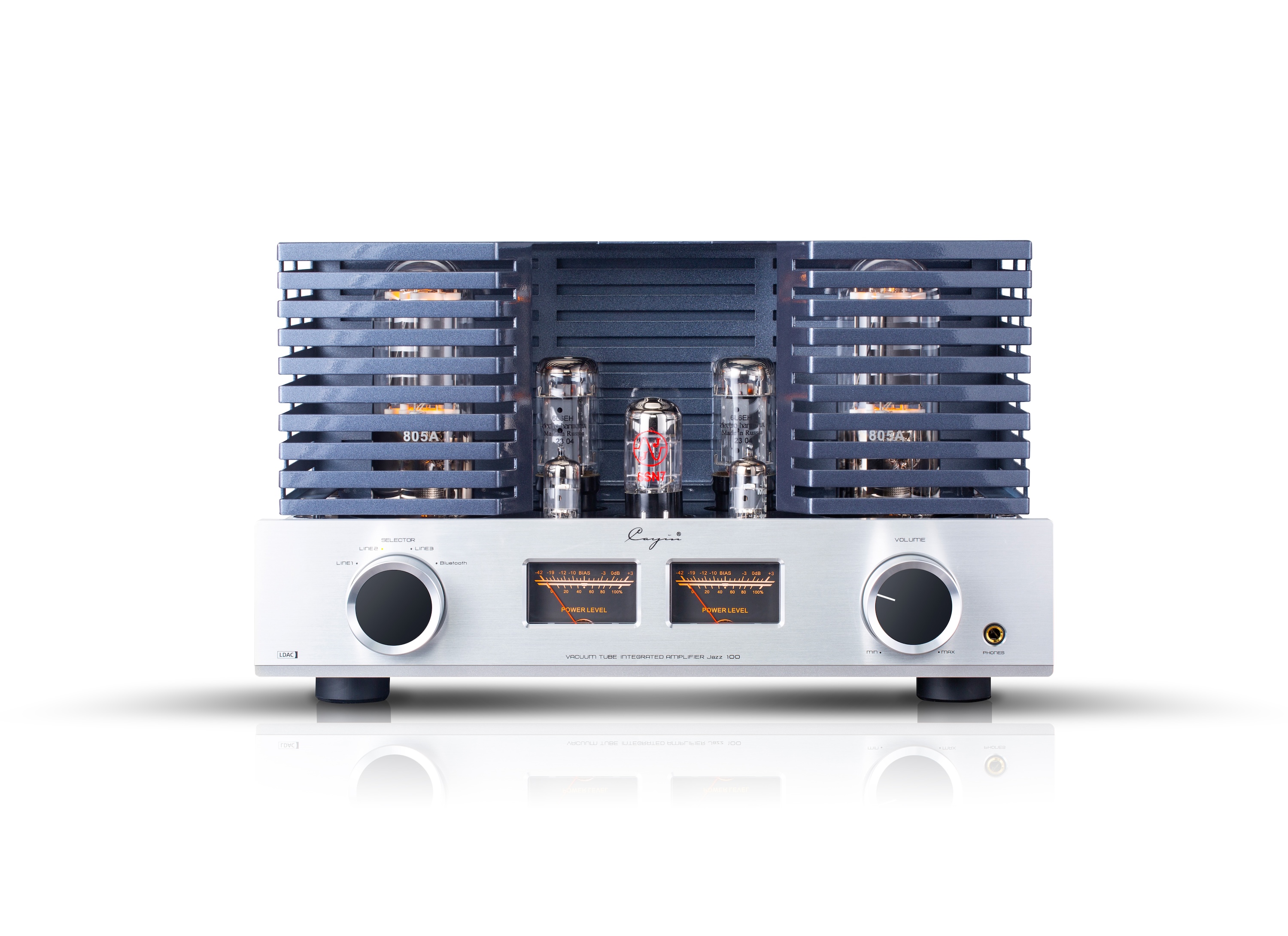

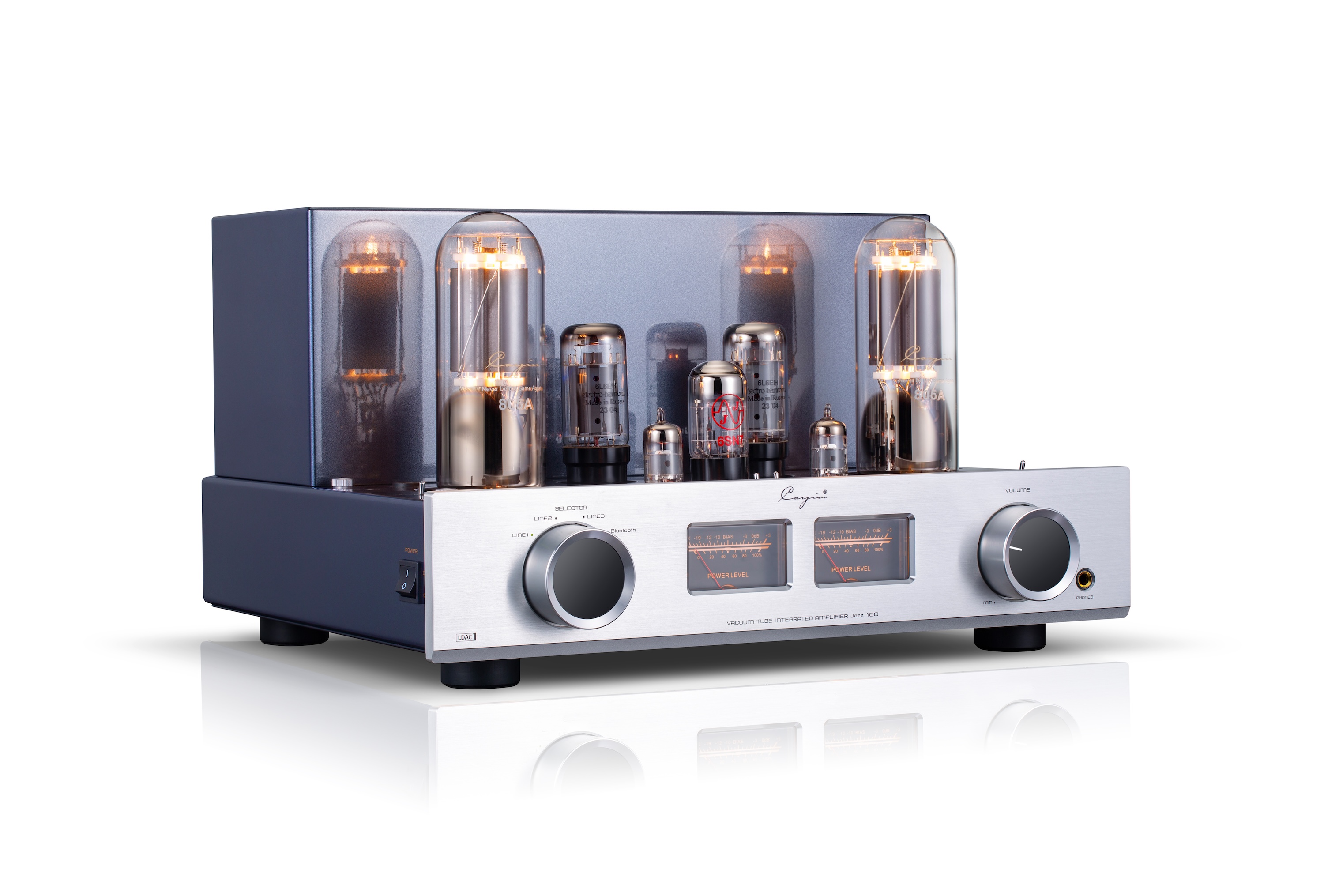

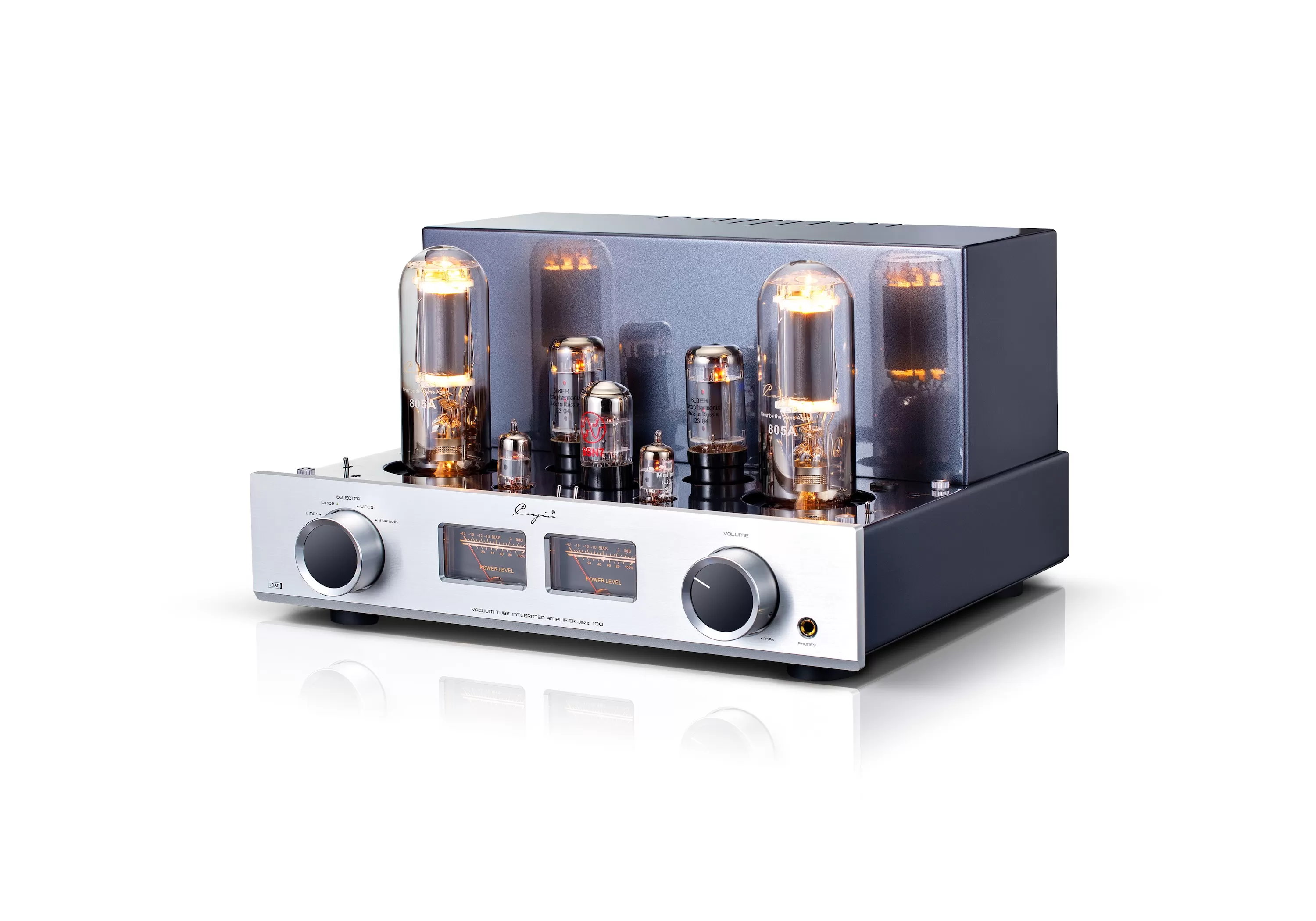

Cayin Jazz 100

Specifications

Amplification

• Output power:
  • 2 × 35 W RMS (THD < 3%)
  • 2 × 46 W (THD < 9%)
• Audio performance:
  • Frequency response: 12 Hz – 33 kHz (–3 dB)
  • Total harmonic distortion: 0.2% at 1 W / 1 kHz (at 90% of rated power)
  • Signal-to-noise ratio: 90 dB (A-weighted)
  • Input sensitivity: 320 mV
  • Input impedance: 100 kΩ

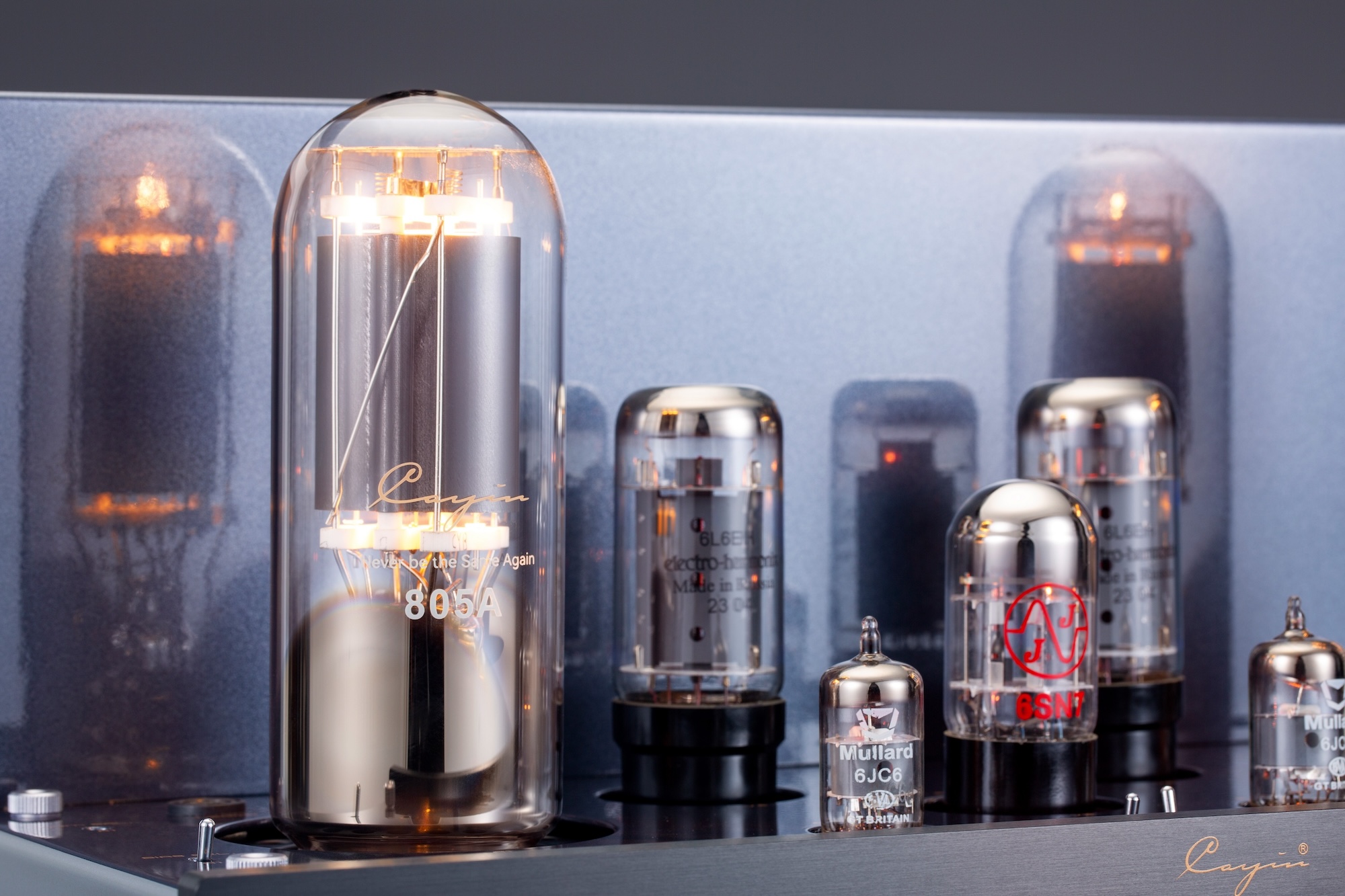

Tube Configuration

• Power tubes: 2 × 805A (triodes – Psvane)
• Driver tubes: 2 × 6L6 (replaceable with EL34, KT88, etc.)
• Preamplification: 1 × 6SN7
• Input amplification: 2 × 6JC6

Features

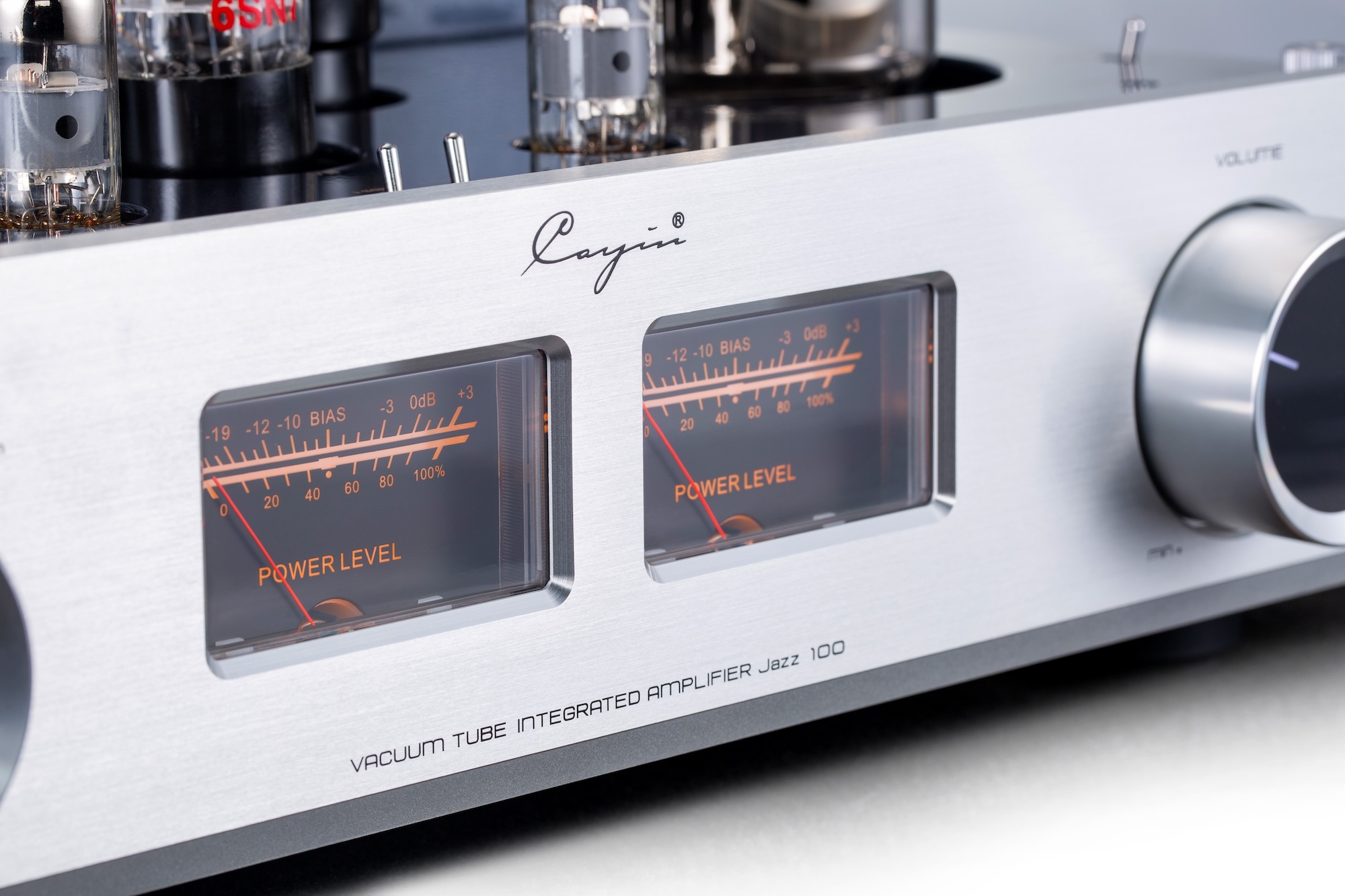

• Front panel analog VU meters (power indication)

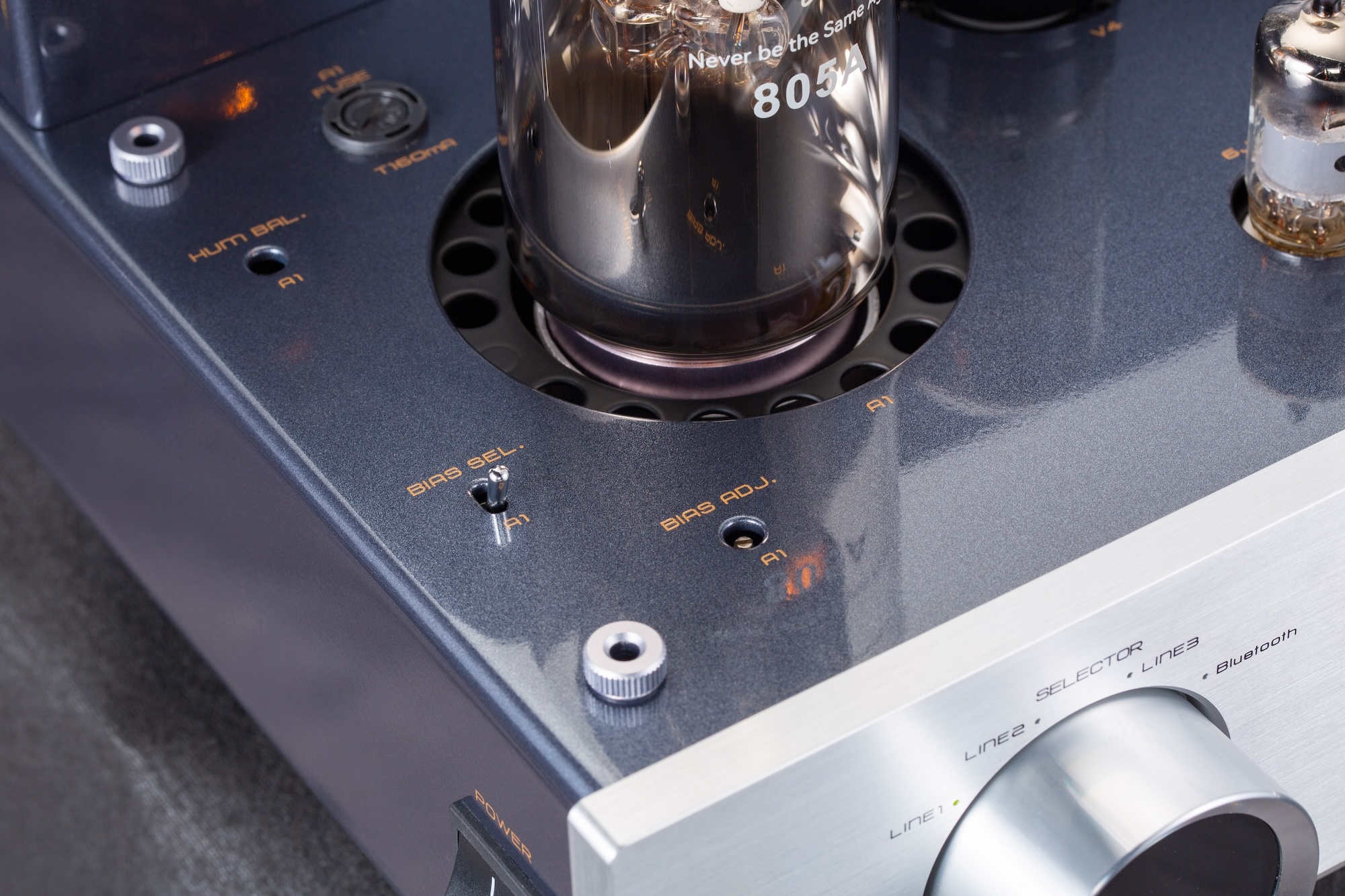

• Manually adjustable bias via trimmer (integrated measurement needle)

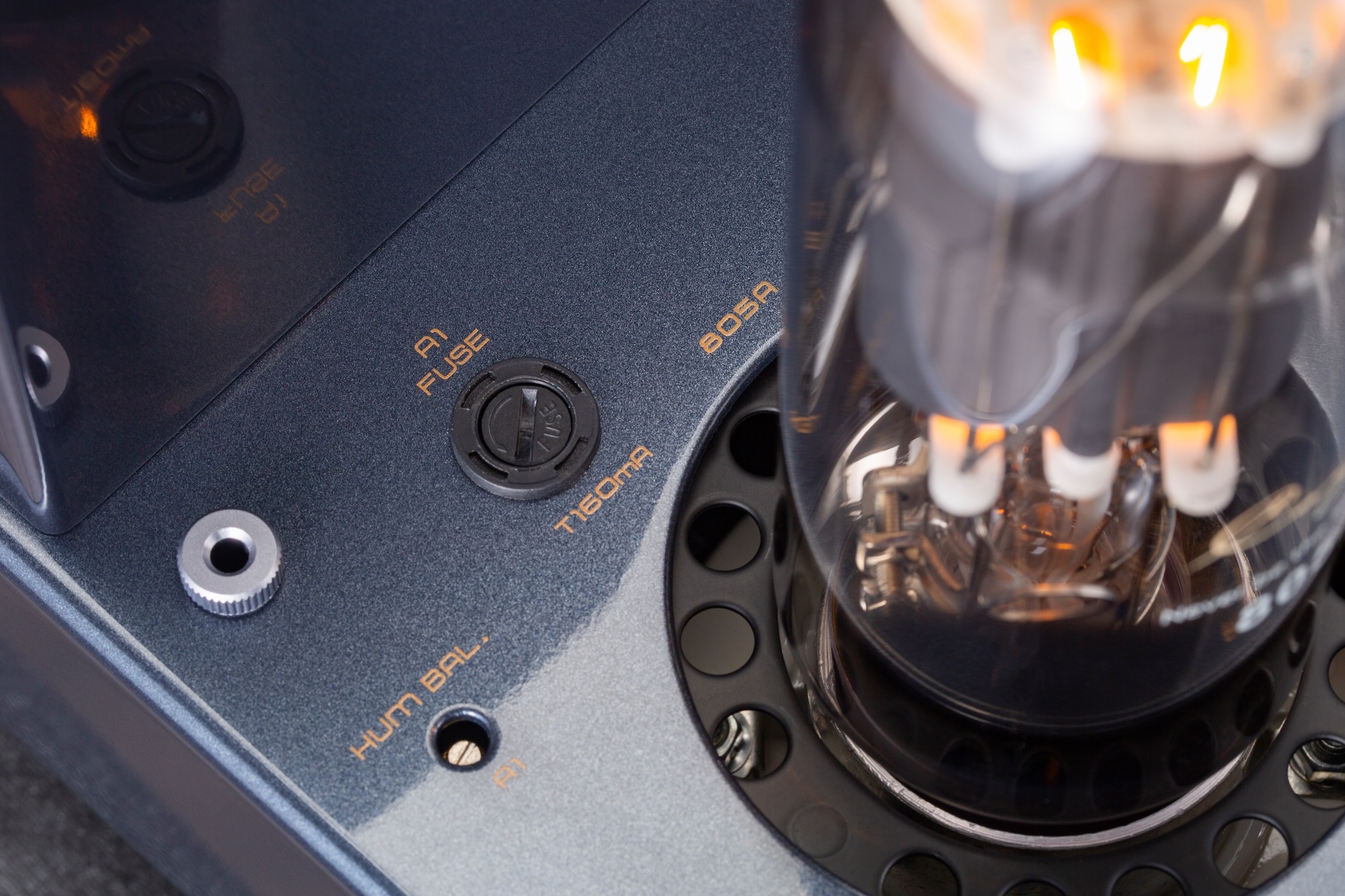

• Hum balancer to minimize background noise
• Adjustable negative feedback level (for a more controlled or open sound)
• Robust IR remote control: source selection, volume, mute
• 6L6 tubes can be replaced (compatible with EL34, KT88, etc.)

Construction and Design

• Solid metal chassis, matte black or silver finish
• Symmetrical design and meticulous internal wiring
• Custom output transformers for stable load, even with demanding speakers

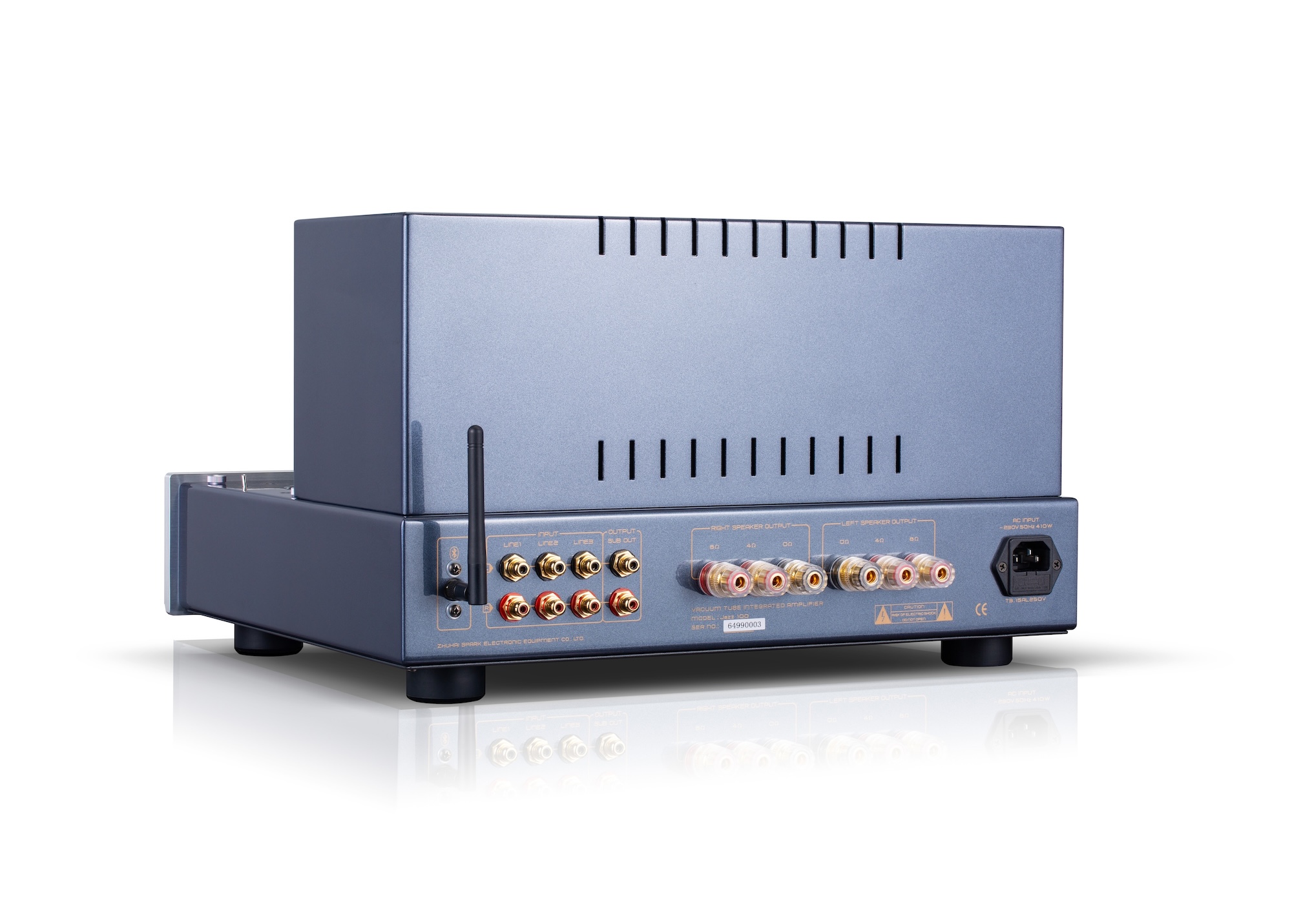

Connectivity

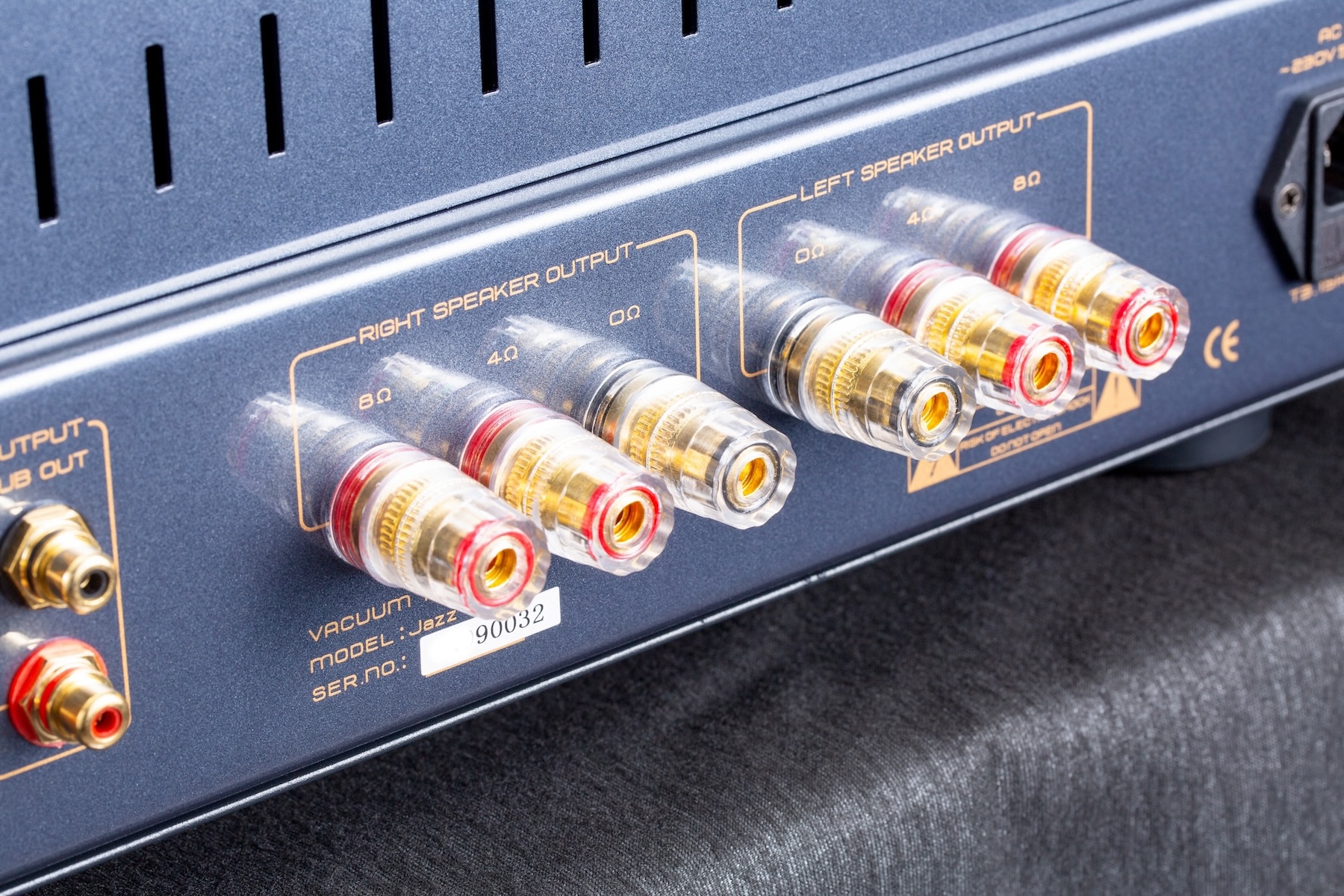

• Speaker outputs: dedicated 4 Ω and 8 Ω terminals
• Headphone output: front jack (compatible with 16–300 Ω)

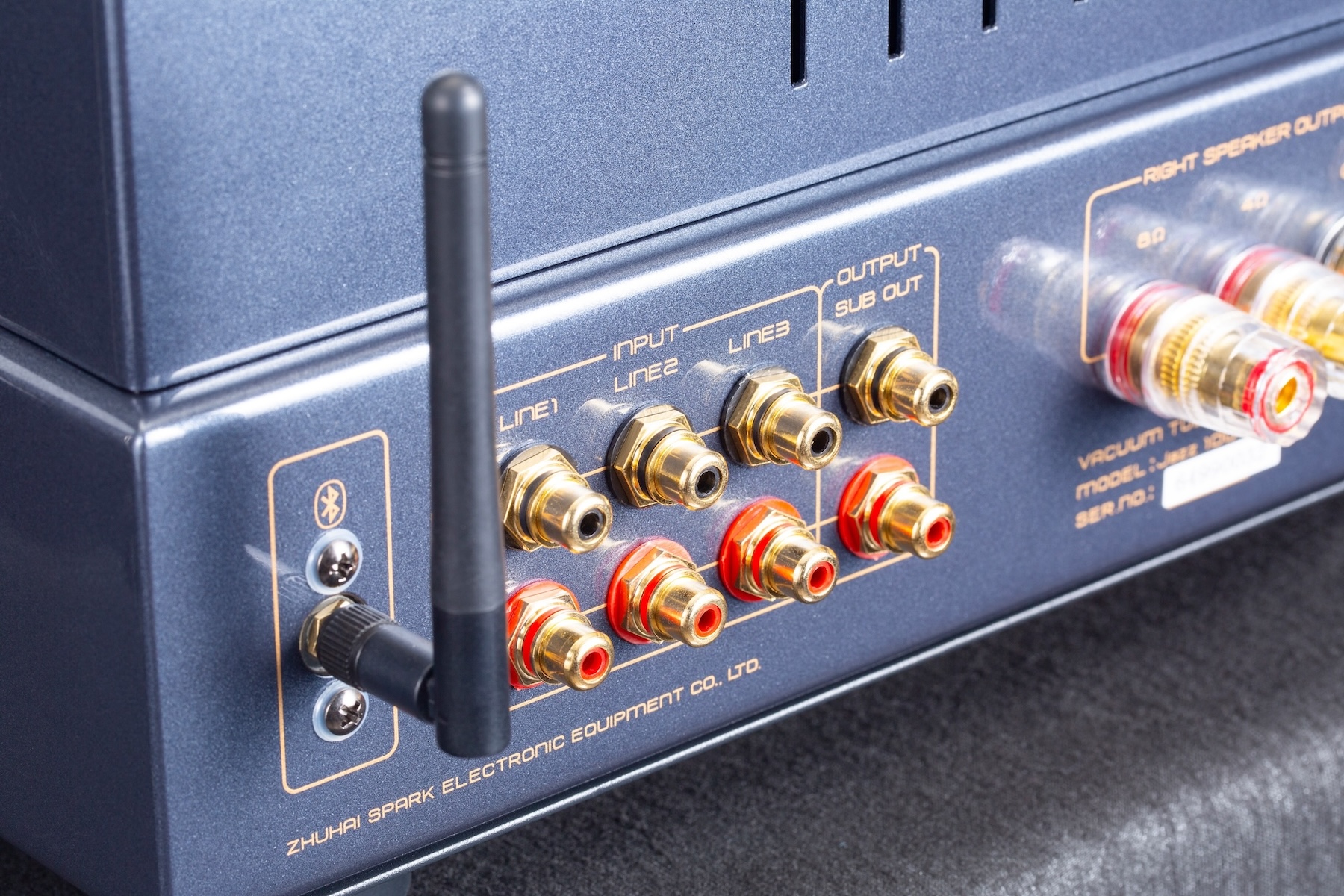

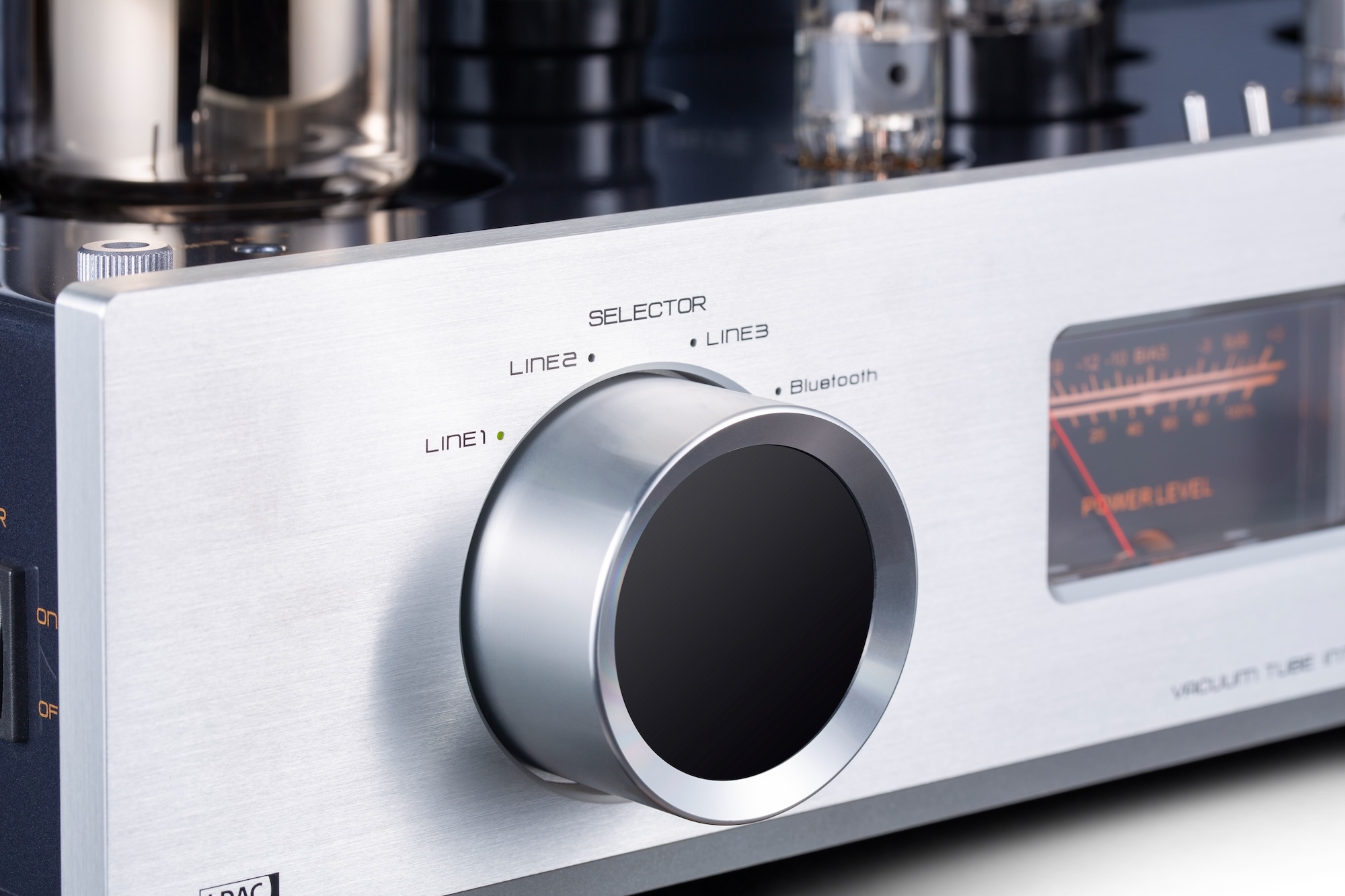

• Analog inputs:
  • 3 × RCA (LINE 1, LINE 2, LINE 3)
  • 1 × Bluetooth (version 5.0)

Bluetooth Section

• Version: Bluetooth 5.0
• Chipset: Qualcomm QCC5125
• Integrated DAC: ESS SABRE ES9018K2M
• Supported codecs:
  • UAT (Ultra Audio Transmission)
  • LDAC, aptX HD, aptX, aptX Low Latency
  • AAC, SBC
• Effective range: ≤ 10 m
• Device name: Cayin HD BT

Dimensions and Weight

• Dimensions (W × D × H): 420 × 389 × 248 mm
• Net weight: 35 kg
• Power consumption: 410 W
