Technical characteristics

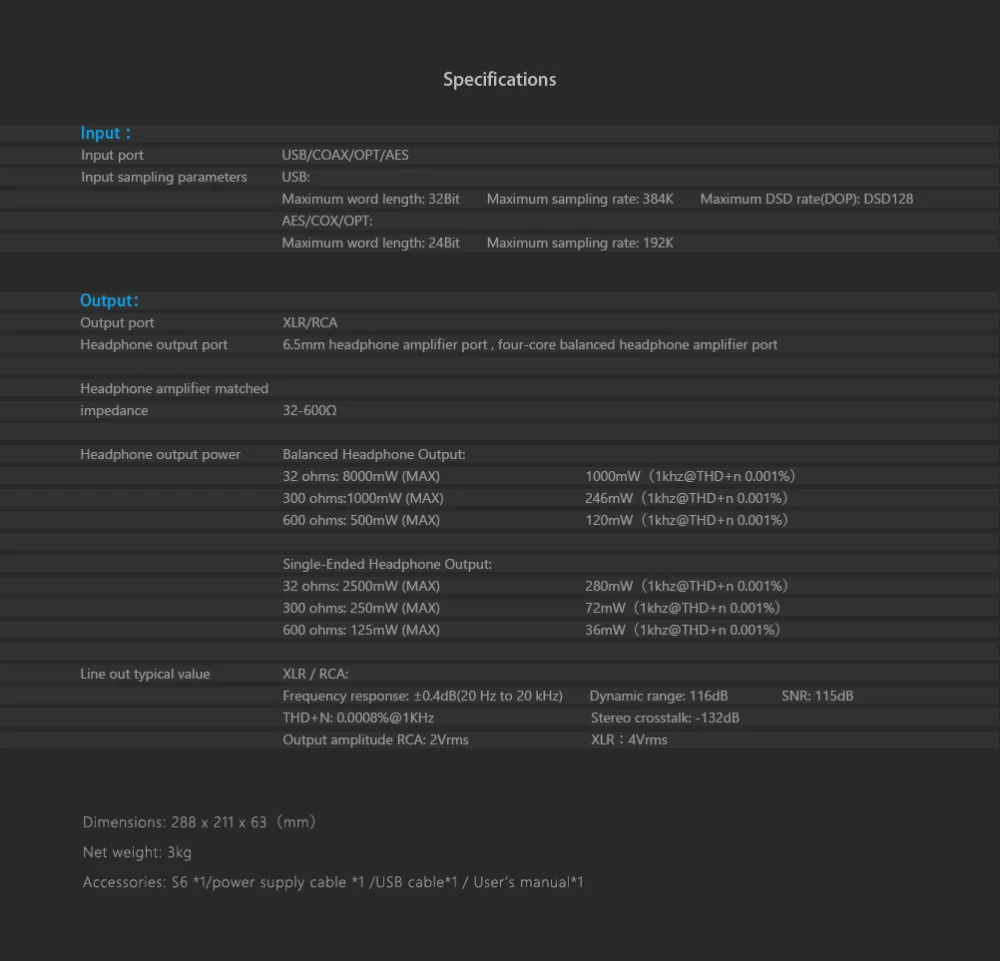

SPECIFICATIONS
Product type Headphone amplifier,DAC
DAC Chip AKM AK4497

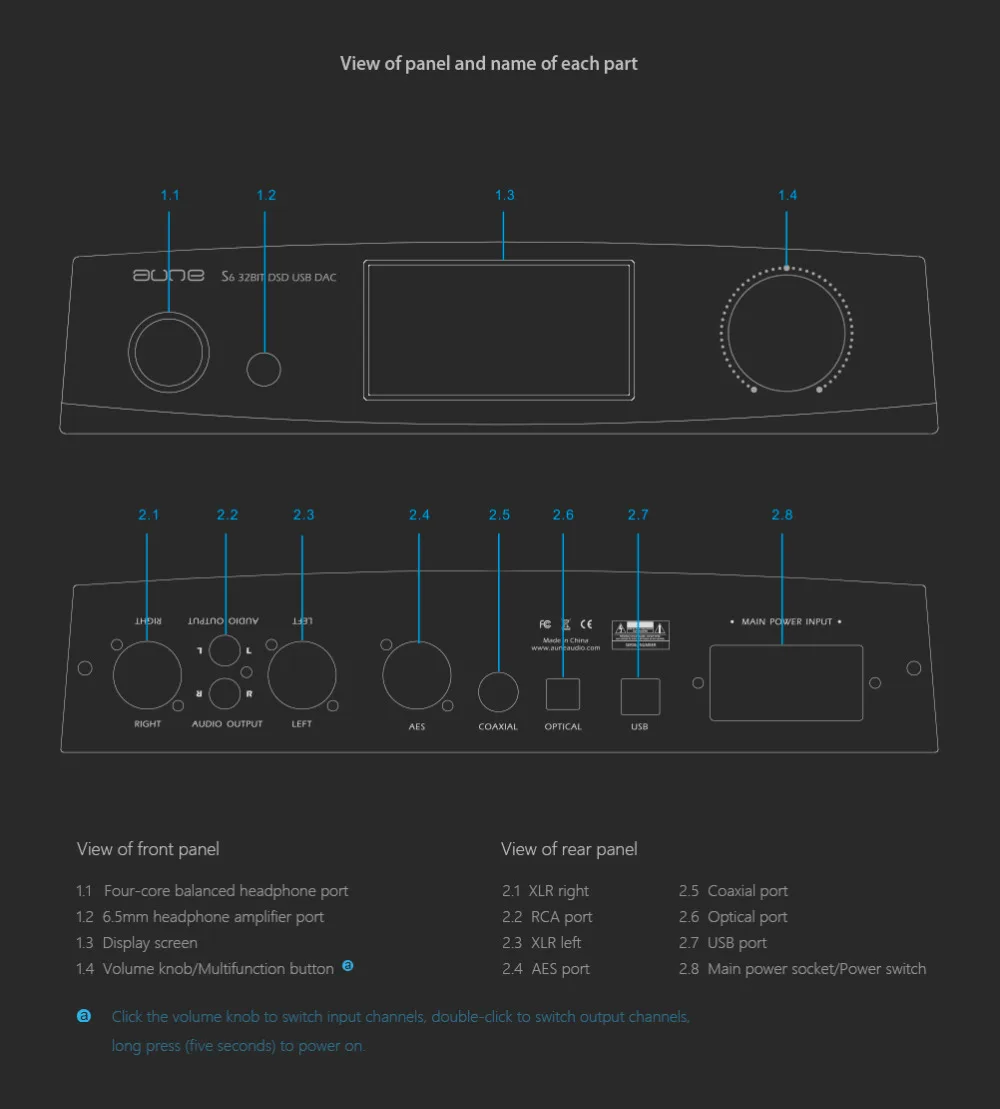

Inputs
1x USB-B
1x Optical Toslink
1x Coaxial
1x AES

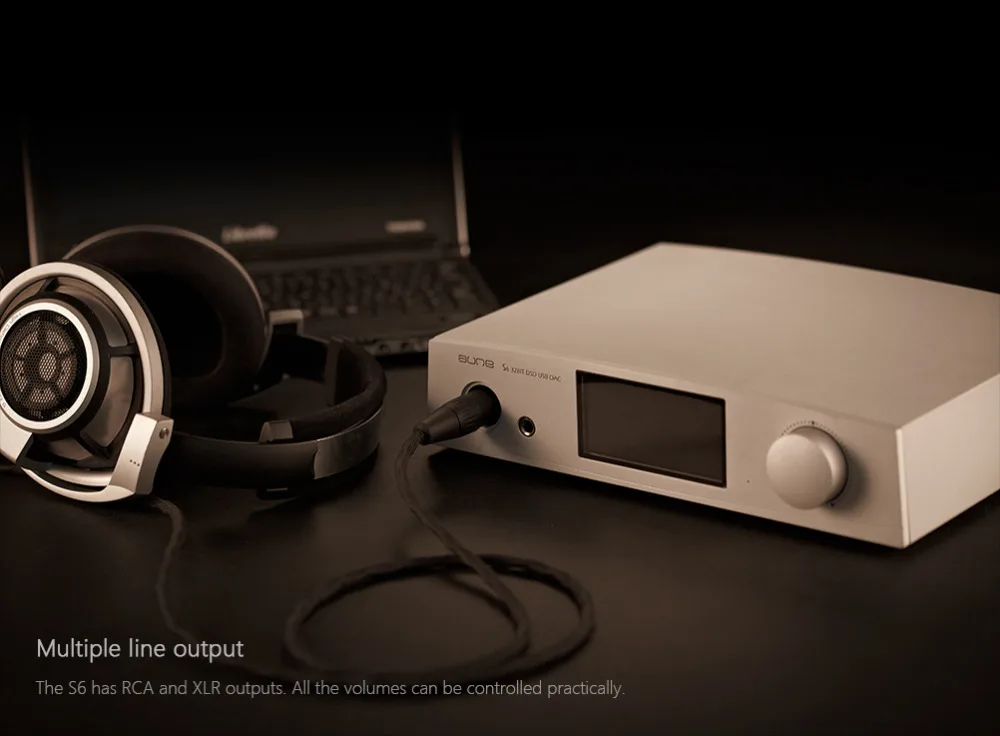

Outputs
1x Single-ended line output stereo RCA
1x Balanced line output stereo XLR
1x Single-ended headphone output Jack 6.35mm
1x Balanced headphone output XLR 4 pins

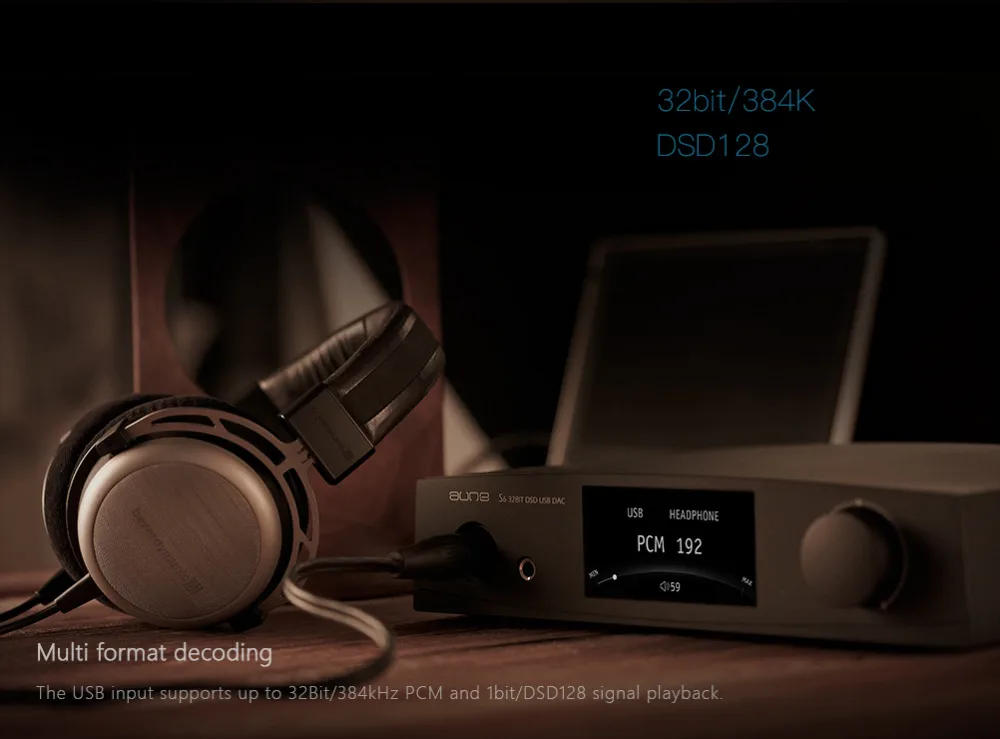

Supported sampling rates USB : PCM up to 32bit 768kHz, DSD up to DSD512
Coaxial : PCM up to 24bit 384kHz, DSD up to DoP128
Optical : PCM up to 24bit 192kHz, DSD DoP64
AES : PCM up to 24bit 384kHz, DSD up to DoP128
Frequency response [Line output] 20Hz-20kHz ±0.2dB
Dynamic range [Line output] 119dB
SNR [Line output] 118dB
THD+N [Line output] 0.0005% @ 1kHz
Crosstalk [Line output] -132dB
Output level [Line output]
RCA : 2Vrms
XLR : 4Vrms
Power Balanced XLR : 405mW @ 300Ω
Single-ended Jack 6.35mm : 120mW @ 300Ω
GENERAL
Housing material Aluminium
Color Silver
Package
1x Aune S6 Pro
1x Power cable
1x USB cable
1x USB flash drive (with driver)
